SW100N03 - N-channel MOSFET

SAMWIN

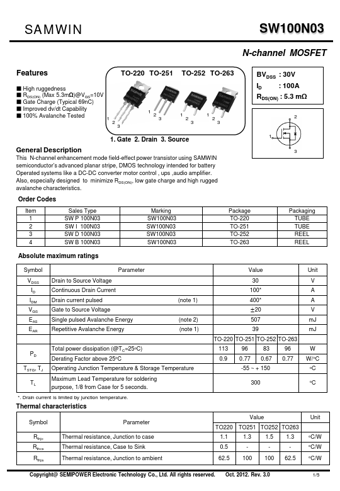

SW100N03 Datasheet Preview — Preview of SW100N03 PDF

Datasheet Details

Part number	SW100N03
Manufacturer	SAMWIN
File Size	484.84 KB
Description	N-channel MOSFET
Datasheet	SW100N03_SAMWIN.pdf

SW100N03 Product details

Description

This N-channel enhancement mode field-effect power transistor using SAMWIN semiconductor’s advanced planar stripe, DMOS technology intended for battery Operated systems like a DC-DC converter motor control , ups ,audio amplifier.

Features

TO-220 TO-251 TO-252 TO-263.
High ruggedness.
RDS(ON) (Max 5.3mΩ)@VGS=10V.
Gate Charge (Typical 69nC).
Improved dv/dt Capability.
100% Avalanche Tested 1 2 3 1 2 3 1 2 3 1 2 3 BVDSS : 30V ID : 100A RDS(ON) : 5.3 mΩ 2 1. Gate 2. Drain 3. Source General.
