SW10N60 Datasheet, Mosfet, SAMWIN

SW10N60 Features

  • Mosfet
  • High ruggedness
  • RDS(ON) (Max 0.75Ω)@VGS=10V
  • Gate Charge (Typ 37nC)
  • Improved dv/dt Capability
  • 100% Avalanche Tested TO-220F TO-220 1.

PDF File Details

Part number:

SW10N60

Manufacturer:

SAMWIN

File Size:

874.68kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteri

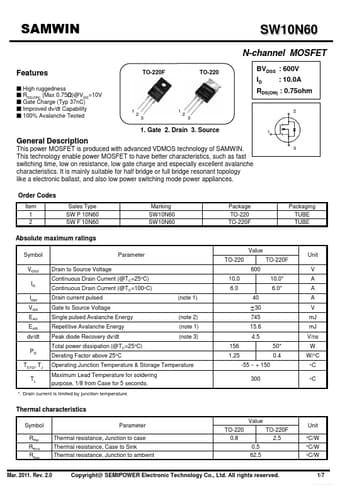

Datasheet Preview: SW10N60 📥 Download PDF (874.68kb)
Page 2 of SW10N60 Page 3 of SW10N60
