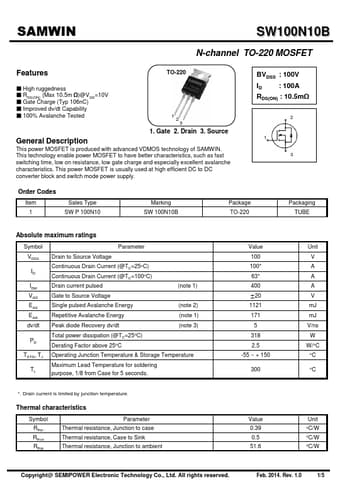

Part number: SW100N10B
Manufacturer: SEMIPOWER
File Size: 509.71KB
Download: 📄 Datasheet
Description: MOSFET
TO-220
* High ruggedness
* RDS(ON) (Max 10.5m Ω)@VGS=10V
* Gate Charge (Typ 106nC)
* Improved dv/dt Capability
* 100% Avalanche Tested
12 3
1. Gat.
This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteristics, such as fast switching time, low on resistance, low gate charge and especially excellent avalanche characteris.
