SW124D05EHISMF Datasheet, Dc-dc Converter, Superworld Electronics

1w high isolation 3kvdc surface mount dc-dc converter

📥 Download PDF (176.10 KB)

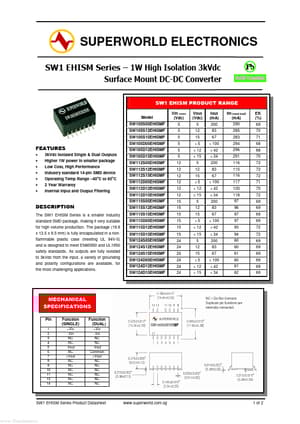

SW124D05EHISMF Datasheet Preview Page 1 — Preview of SW124D05EHISMF Datasheet

PDF File Details

Part number:

SW124D05EHISMF

Manufacturer:

Superworld Electronics

File Size:

176.10 KB

Download:

📄 Download the SW124D05EHISMF Datasheet PDF

Description:

1w high isolation 3kvdc surface mount dc-dc converter.
The SW1 EHISM Series is a smaller industry standard SMD package, making it very suitable for high volume production.
The package (19.9 x 13.5 x 9.5 mm) is fully encapsulated in a nonflammable plastic .

✔ SW124D05EHISMF Features

3kVdc Isolated Single & Dual Outputs Higher 1W power in smaller package Low Cost, High Performance Industry standard 14-pin SMD device Operating Temp Range

✔ SW124D05EHISMF Application

5 12 15 ±5 ± 12 ± 15 200 83 67 ± 100 ± 42 ± 34 MECHANICAL SPECIFICATIONS Pin 1 2 3 4 5 6 7 8 9 10 11 13
