SW210N04A

MOSFET

SW210N04A Features

* TO-220

* High ruggedness

* RDS(ON) (Max 3.6m Ω)@VGS=10V

* Gate Charge (Typ 184nC)

* Improved dv/dt Capability

* 100% Avalanche Tested 12 3 1. Gate 2. Drain 3. Source General Description This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology e

SW210N04A General Description

This power MOSFET is produced with advanced VDMOS technology of SAMWIN. This technology enable power MOSFET to have better characteristics, such as fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. This power MOSFET is usually used at high ef.

SW210N04A Datasheet (534.41 KB)

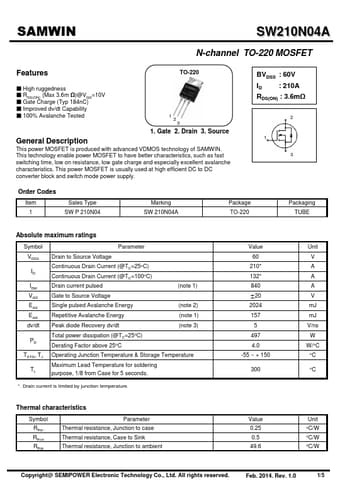

Preview of SW210N04A PDF

Datasheet Details

Part number:

SW210N04A

Manufacturer:

SEMIPOWER

File Size:

534.41 KB

Description:

Mosfet.
