SW30CPF06

Diode

SW30CPF06 Features

* Ultrafast recovery time

* Low forward voltage drop

* 150 °C operating junction temperature

* Low leakage current

* Designed and qualified according to JEDEC-JESD47 TO-3P 12 3 1. Anode 2. Gathode 3. Anode VR : 600V IF(AV) : 30A VF at IF : 1.4V General Description This FRED is

SW30CPF06 General Description

This FRED is designed with optimized performance of forward voltage drop and ultrafast recovery time. the platinum doped life time control, guarantee the best overall performance ruggedness and reliability characteristics. This devices are intended for use in the output rectification stage of SMPS, .

SW30CPF06 Datasheet (614.88 KB)

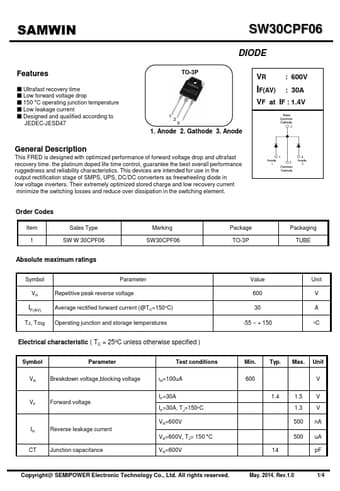

Preview of SW30CPF06 PDF

Datasheet Details

Part number:

SW30CPF06

Manufacturer:

SEMIPOWER

File Size:

614.88 KB

Description:

Diode.
