SW3205B

N-channel Enhanced mode TO-220 MOSFET

SW3205B Features

* TO-220

* High ruggedness

* Low RDS(ON) (Typ 4.8mΩ)@VGS=10V

* Low Gate Charge (Typ 80nC)

* Improved dv/dt Capability

* 100% Avalanche Tested

* Application: DC-DC Converter, Inverter, 12 3 Synchronous Rectification General Description 1. Gate 2. Drain 3. Source This power

SW3205B General Description

1. Gate 2. Drain 3. Source This power MOSFET is produced with advanced technology of SAMWIN. This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. Order Codes.

SW3205B Datasheet (583.24 KB)

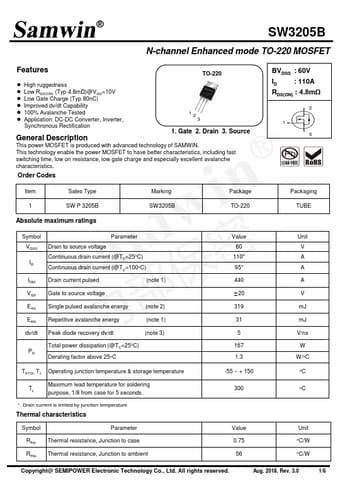

Preview of SW3205B PDF

Datasheet Details

Part number:

SW3205B

Manufacturer:

Samwin

File Size:

583.24 KB

Description:

N-channel enhanced mode to-220 mosfet.
