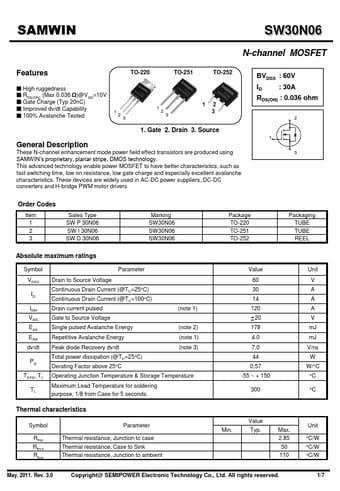

SW30N06 Datasheet, Mosfet, Samwin

SW30N06 Features

• Mosfet
• High ruggedness
• RDS(ON) (Max 0.036 Ω)@VGS=10V
• Gate Charge (Typ 20nC)
• Improved dv/dt Capability
• 100% Avalanche Tested TO-220 TO-251 T

PDF File Details

Part number:

SW30N06

Manufacturer:

Samwin

File Size:

551.06kb

Download:

📄 Datasheet

Description:

N-channel mosfet. These N-channel enhancement mode power field effect transistors are produced using SAMWIN’s proprietary, planar stripe, DMOS technolo
