SW3522 Datasheet - ISMARTWARE

PD Solution

SW3522 Features

* Synchronous Buck

* Current up to 3.5A

* Input Voltage 6~35V

* Support CC/CV Mode

* Support Wire Drop Compensation

* Output Fast Charge Protocol

* Support PPS/PD3.0/PD2.0

* Support QC4+/QC4/QC3.0/QC2.0

* Support AFC

SW3522 General Description

The SWSW3522 is a highly integrated power management IC for fast charge application. It integrates 3.5A synchronous buck, PPS/PD/QC/AFC/FCP/SFCP fast charge protocol, CC/CV mode. With simple external components, The SW3522 provides a turn-key high efficiency solution for fast charge application. 2.

SW3522 Datasheet (453.44 KB)

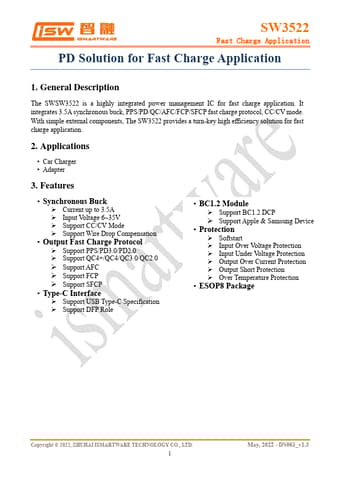

Preview of SW3522 PDF

Datasheet Details

Part number:

SW3522

Manufacturer:

ISMARTWARE

File Size:

453.44 KB

Description:

Pd solution.
