MMBTSB1197 Datasheet - SEMTECH ELECTRONICS

MMBTSB1197 - NPN Transistor

MMBTSB1197 PNP Silicon Epitaxial Planar Transistor Low frequency transistor The transistor is subdivided into two groups Q and R according to its DC current gain.

www.DataSheet4U.com Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Range Symbol -VCBO -VCEO -VEBO -IC Ptot Tj TS SOT-23 Plastic Package Value 40 32 5 800 200 150 -55 to +150 Unit V V V m

MMBTSB1197_SEMTECHELECTRONICS.pdf

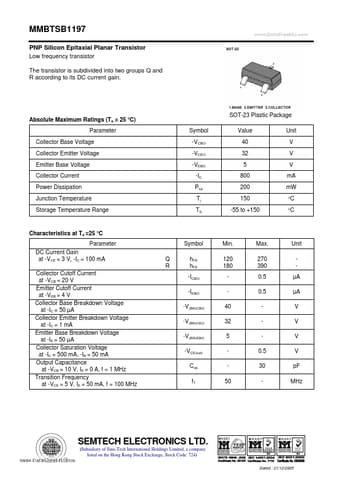

Preview of MMBTSB1197 PDF
MMBTSB1197 Datasheet Preview Page 2

Datasheet Details

Part number:

MMBTSB1197

Manufacturer:

SEMTECH ELECTRONICS

File Size:

189.79 KB

Description:

Npn transistor.
