MMBTSB815 NPN Transistor

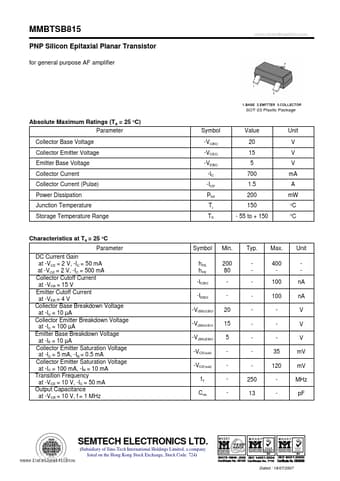

MMBTSB815 PNP Silicon Epitaxial Planar Transistor for general purpose AF amplifier www.DataSheet4U.com SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Collector Current (Pulse) Power Dissipation Junction Temperature Storage Temperature Range Symbol -VCBO -VCEO -VEBO -IC -ICP Ptot Tj TS Value 20 15 5 700 1.5 200 150 - 55 to + 150 Unit V V V mA A mW O C C O Characteristics at Ta .
