MMBTSB1198 Datasheet - SEMTECH ELECTRONICS

MMBTSB1198 NPN Transistor

MMBTSB1198 PNP Silicon Epitaxial Planar Transistor Low frequency transistor The transistor is subdivided into two groups Q and R, according to its DC current gain. www.DataSheet4U.com SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol -VCBO -VCEO -VEBO -IC Ptot Tj TS Value 80 80 5 0.5 200 150 -55 to +150 Un.

MMBTSB1198_SEMTECHELECTRONICS.pdf

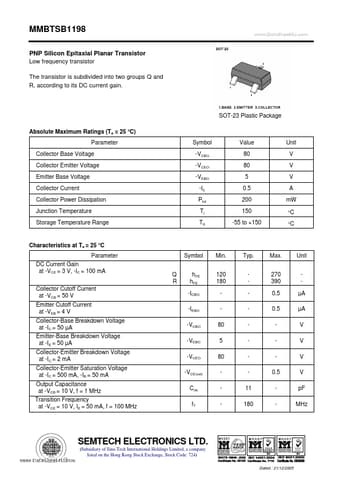

Preview of MMBTSB1198 PDF

Datasheet Details

Part number:

MMBTSB1198

Manufacturer:

SEMTECH ELECTRONICS

File Size:

101.30 KB

Description:

Npn transistor.
