ST2SD1303 - NPN Silicon Epitaxial Planar Transistor

ST2SD1303 Description

ST 2SD1303 NPN Silicon Epitaxial Planar Transistor for audio muting application.On special request, these transistors can be manufactured in differen.

ST2SD1303 Features

* ․High emitter-base voltage VEBO=7.5V(min)
* ․High reverse hFE ․Low on resistance reverse hFE=20(min) (VCE=2V, IC=4mA) Ron=0.6Ω (Typ. ) (IB=1mA) TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta = 25 oC) Symbol Collector Base Voltage Collector Emitter Voltage Emitter Base Vo

📥 Download Datasheet

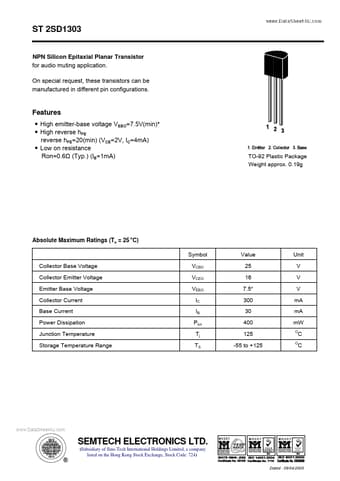

Preview of ST2SD1303 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST2SD1303
Manufacturer
SEMTECH ELECTRONICS
File Size
272.80 KB
Datasheet
ST2SD1303_SEMTECHELECTRONICS.pdf
Description
NPN Silicon Epitaxial Planar Transistor
