ST2SA1268 PNP Silicon Transistor

ST 2SA1268 PNP Silicon Epitaxial Planar Transistor For high voltage applications. The transistor is subdivided into two groups, G and L according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (T a = 25? ) Symbol Value 120 120 5 100 100 300 125 -55 to +125 Unit V V V mA mA mW O O Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collecto.

ST2SA1268_SEMTECHELECTRONICS.pdf

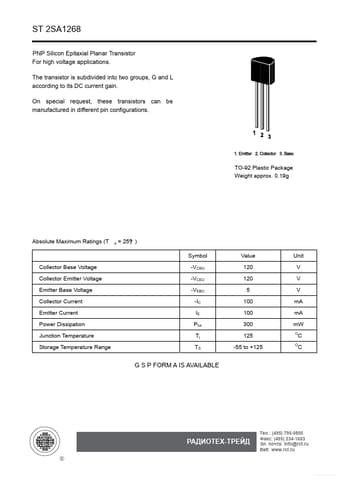

Preview of ST2SA1268 PDF
ST2SA1268 Datasheet Preview Page 2

Datasheet Details

Part number:

ST2SA1268

Manufacturer:

SEMTECH ELECTRONICS

File Size:

436.58 KB

Description:

Pnp silicon transistor.
