ST2S06B - (ST2S06xxx) Dual synchronous rectification

Product Overview

STMicroelectronics

Datasheet Details

Part number	ST2S06B
Manufacturer	STMicroelectronics
File Size	377.53 KB
Description	(ST2S06xxx) Dual synchronous rectification
Datasheet	ST2S06B Datasheet
Note	This datasheet PDF includes multiple part numbers: ST2S06B, ST2S06A33. Please refer to the document for exact specifications by model.

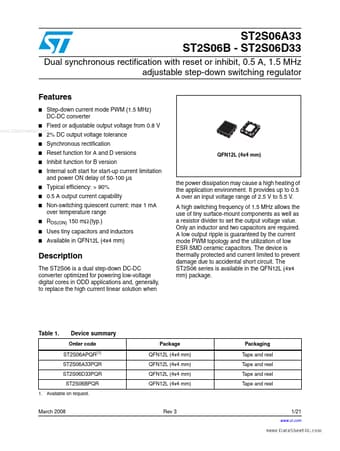

Additional preview pages of the ST2S06B datasheet.

Product details

Description

The ST2S06 is a dual step-down DC-DC converter optimized for powering low-voltage digital cores in ODD applications and, generally, to replace the high current linear solution when Table 1. Device summary Order code ST2S06APQR(1) ST2S06A33PQR ST2S06D33PQR ST2S06BPQR Package QFN12L (4x4 mm) QFN12L (4x4 mm) QFN12L (4x4 mm) QFN12L (4x4 mm) Packaging Tape and reel Tape and reel Tape and reel Tape and reel 1. Available on request.March 2008 Rev 3 1/21 www.st.com 21 Contents ST2S06A33 - ST2S0

Features

Step-down current mode PWM (1.5 MHz) DC-DC converter from 0.8 V.
Fixed or adjustable output voltage www. DataSheet4U. com.
2% DC output voltage tolerance.
Synchronous rectification Reset function for A and D versions Inhibit function for B version Internal soft start for start-up current limitation and power ON delay of 50-100 µs Typical efficiency: > 90% 0.5 A output current capability Non-switching quiescent current: m.
