ST2SA1505 Datasheet - PACO

ST2SA1505 PNP Silicon Epitaxial Planar Transistor

ST 2SA1505 PNP Silicon Epitaxial Planar Transistor for switching and AF amplifier applications. The transistor is subdivided into two groups, O and Y, according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. 1. Emitter 2. Collector 3. Base TO-92 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Base Current Power Dissipation Ju.

ST2SA1505-PACO.pdf

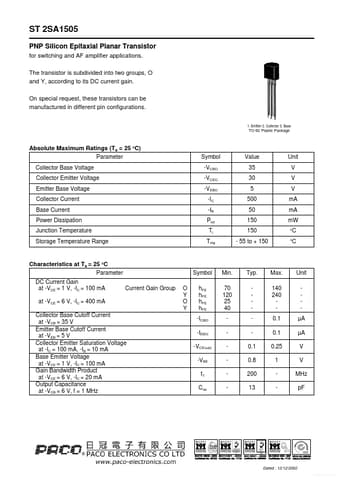

Preview of ST2SA1505 PDF

Datasheet Details

Part number:

ST2SA1505

Manufacturer:

PACO

File Size:

100.15 KB

Description:

Pnp silicon epitaxial planar transistor.
