ST2SA733 Datasheet - SEMTECH

ST2SA733 PNP Silicon Epitaxial Planar Transistor

ST 2SA733 PNP Silicon Epitaxial Planar Transistor for switching and AF amplifier applications. The transistor is subdivided into five groups, R, O, Y, P and L, according to its DC current gain. As complementary type the NPN transistor ST 2SC945 is recommended. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta = 25 oC) Symbol Collector Base Voltage Collector Emitter Voltage Emitter B.

ST2SA733_SEMTECH.pdf

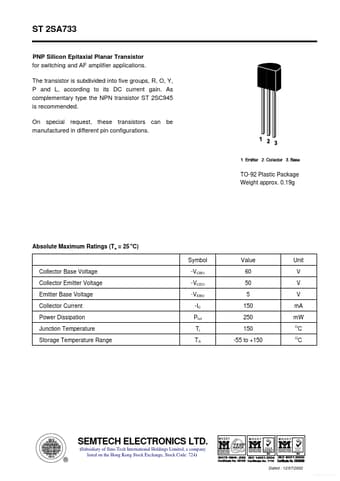

Preview of ST2SA733 PDF
ST2SA733 Datasheet Preview Page 2 ST2SA733 Datasheet Preview Page 3

Datasheet Details

Part number:

ST2SA733

Manufacturer:

SEMTECH

File Size:

261.45 KB

Description:

Pnp silicon epitaxial planar transistor.
