ST2SA1015 Datasheet - SEMTECH ELECTRONICS

ST2SA1015 PNP Silicon Epitaxial Planar Transistor

www.DataSheet4U.com ST 2SA1015 PNP Silicon Epitaxial Planar Transistor for switching and AF amplifier applications. The transistor is subdivided into three groups, O, Y and G, L , according to its DC current gain. As complementary type the NPN transistor ST 2SC1815 is recommended. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta = 25℃) Symbol Collector Base Voltage Collector Emit.

ST2SA1015_SEMTECHELECTRONICS.pdf

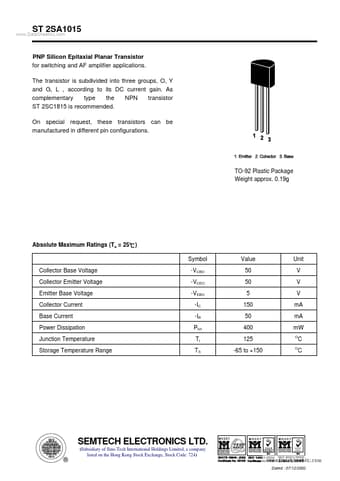

Preview of ST2SA1015 PDF
ST2SA1015 Datasheet Preview Page 2

Datasheet Details

Part number:

ST2SA1015

Manufacturer:

SEMTECH ELECTRONICS

File Size:

177.04 KB

Description:

Pnp silicon epitaxial planar transistor.
