ST2SD1616 NPN Silicon Transistor

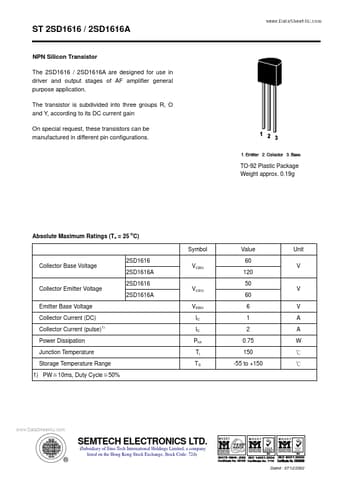

ST 2SD1616 / 2SD1616A NPN Silicon Transistor The 2SD1616 / 2SD1616A are designed for use in driver and output stages of AF amplifier general purpose application. The transistor is subdivided into three groups R, O and Y, according to its DC current gain On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta = 25 OC) Symbol Collector Base Voltage 2SD1616 2SD1616A Collector Emitter Voltage.
