Part number: 1N5818WS
Manufacturer: SEMTECH
File Size: 490.43KB
Download: 📄 Datasheet

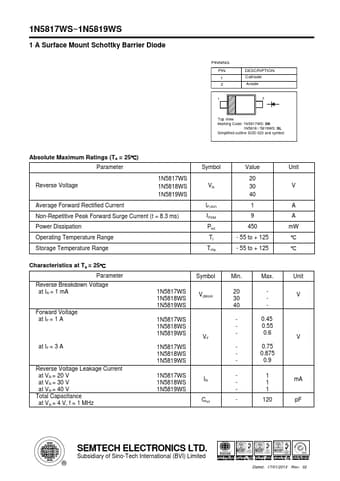

Description: 1A Surface Mount Schottky Barrier Diode
Cathode Anode
2
Top View Marking Code: 1N5817WS: SK
1N5818 / 5819WS: SL Simplified outline SOD-323 and symbol
Absolute Maximum Ratings (Ta = 25℃) Parameter
Reverse Voltage
1N5817WS 1N5818WS 1N5819WS
Average Forward Rectified Current
Non-Repetit.
