1N60SW, 1N60PW Gold Wire Bonding Diode

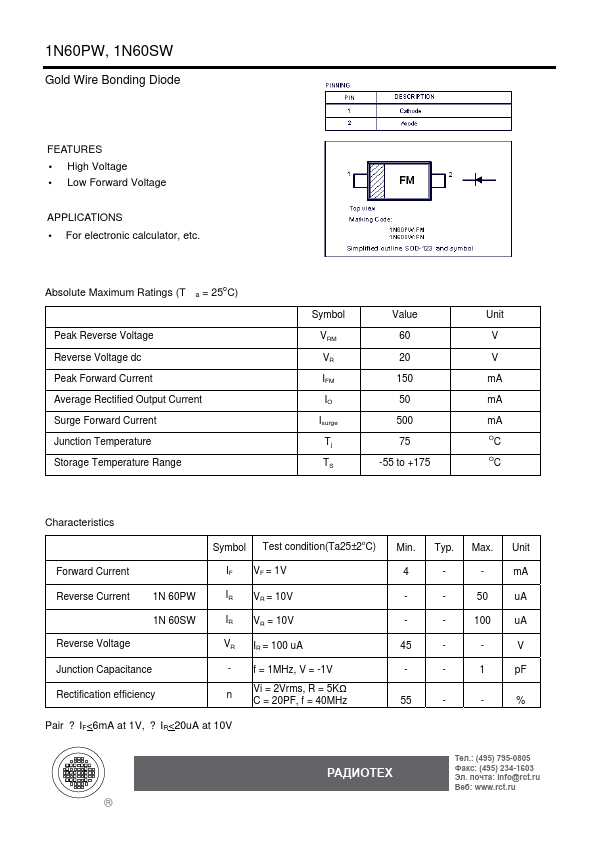

📥 Download Datasheet  Datasheet Preview Page 1

Description

1N60PW, 1N60SW Gold Wire Bonding Diode .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N60SW, 1N60PW. Please refer to the document for exact specifications by model.

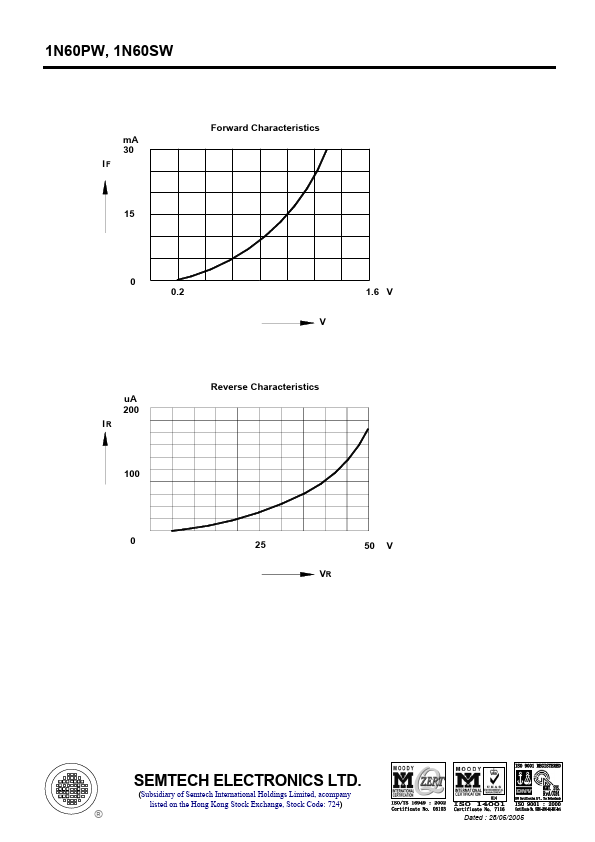

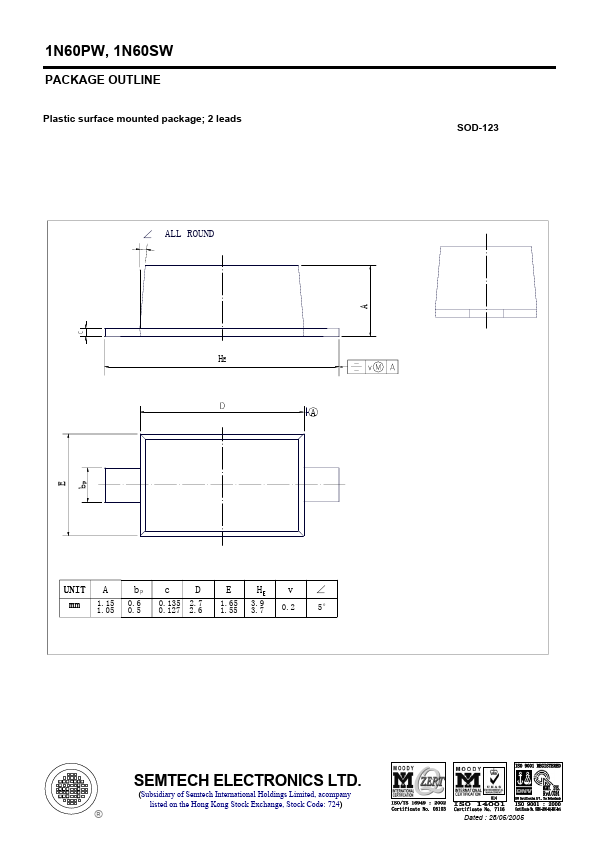

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
1N60SW, 1N60PW
Manufacturer
SEMTECH
File Size
210.06 KB
Datasheet
1N60PW-SEMTECH.pdf
Description
Gold Wire Bonding Diode
Note
This datasheet PDF includes multiple part numbers: 1N60SW, 1N60PW.
Please refer to the document for exact specifications by model.

Features

* High Voltage

Applications

* For electronic calculator, etc. Absolute Maximum Ratings (T a = 25oC) Peak Reverse Voltage Reverse Voltage dc Peak Forward Current Average Rectified Output Current Surge Forward Current Junction Temperature Storage Temperature Range Symbol Value Unit VRM 60 V VR 20 V I FM 150 m
