2SD1817Z - NPN Silicon Transistor

2SD1817Z Description

ST 2SD1817Z NPN Silicon Epitaxial Planar Transistor Motor drivers, hammer drivers and relay drivers applications Absolute Maximum Ratings (Ta = 25 OC.

2SD1817Z Applications

* Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Collector Dissipation @ TC = 25 OC Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC ICP PC T

📥 Download Datasheet

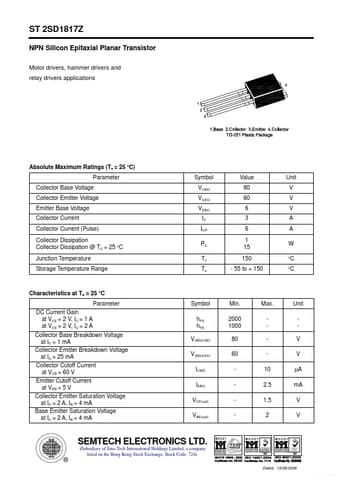

Preview of 2SD1817Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD1817Z
Manufacturer
SEMTECH
File Size
248.87 KB
Datasheet
2SD1817Z_SEMTECH.pdf
Description
NPN Silicon Transistor
