DB101S - SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER

Name: DB101S
SKU: DB101S-999881

SEMTECH

The DB101S by SEMTECH is a SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	DB101S
Manufacturer	SEMTECH
File Size	276.82 KB
Description	SINGLE-PHASE GLASS PASSIVATED SILICON SURFACE MOUNT BRIDGE RECTIFIER
Datasheet	DB101S-SEMTECH.pdf

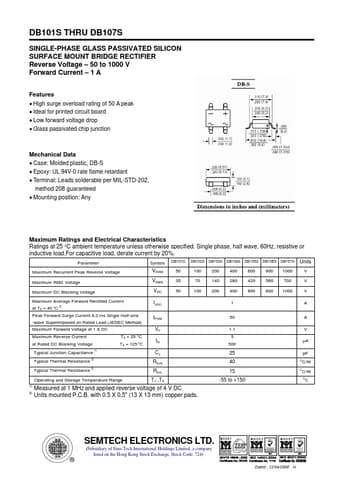

Additional preview pages of the DB101S datasheet.

High surge overload rating of 50 A peak.
Ideal for printed circuit board.
Low forward voltage drop.
Glass passivated chip junction Mechanical Data.
Case: Molded plastic, DB-S.
Epoxy: UL 94V-0 rate flame retardant.
Terminal: Leads solderable per MIL-STD-202, method 208 guaranteed.
Mounting position: Any Maximum Ratings and Electrical Characteristics Ratings at 25 OC ambient temperature unless otherwise specified. Single pha.
