LL4153 Silicon Epitaxial Planar Switching Diode

📥 Download Datasheet Datasheet Preview Page 1

Description

LL4153 Silicon Epitaxial Planar Switching Diode Applications * High-speed switching LL-34 Absolute Maximum Ratings (Ta = 25 OC) Parameter S.

📥 Download Datasheet

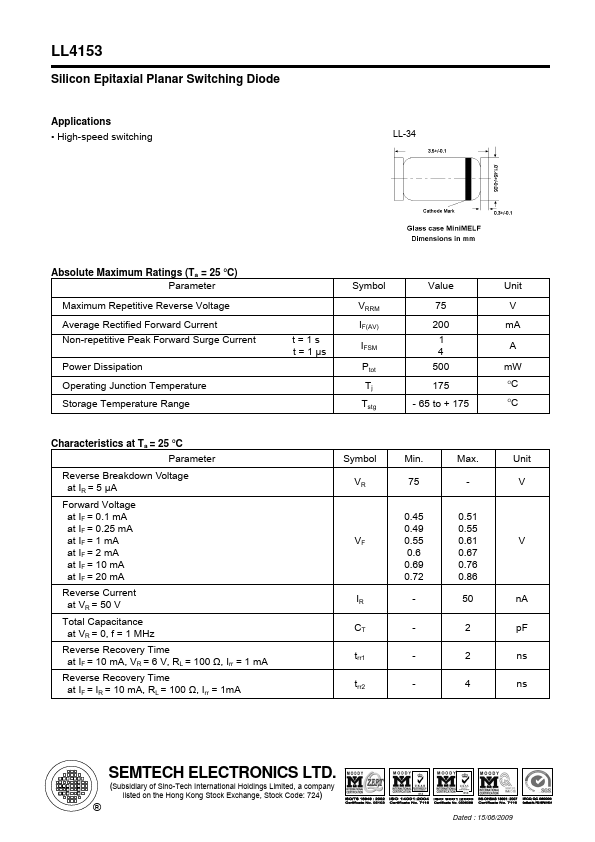

Preview of LL4153 PDF

Datasheet Specifications

Part number
LL4153
Manufacturer
SEMTECH
File Size
147.17 KB
Datasheet
LL4153-SEMTECH.pdf
Description
Silicon Epitaxial Planar Switching Diode

Applications

* High-speed switching LL-34 Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Unit Maximum Repetitive Reverse Voltage VRRM 75 V Average Rectified Forward Current IF(AV) 200 mA Non-repetitive Peak Forward Surge Current t=1s t = 1 µs IFSM 1 4 A Power Dissipation
