S3MF SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER

SEMTECH

S3MF Description

S3AF THRU S3MF SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER Reverse Voltage * 50 to 1000 V Forward Current * 3 A SMAF .

S3MF Features

* Glass Passivated Chip Juntion

S3MF Applications

* Low profile package
* Easy pick and place 4.4 4.9 3.3 3.7 2.40 2.80 1.3 1.6 Mechanical Data
* Case: SMAF
* Terminals: Solderable per MIL-STD-750, method 2026 0.9 1.1 0.12 0.2 All Dimensions in mm Maximum Ratings and Electrical Characteristics Ratings at 25℃ amb

📥 Download Datasheet

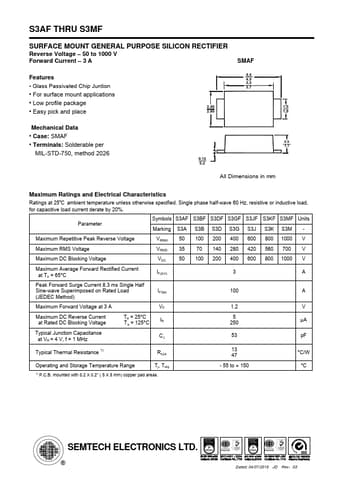

S3MF Datasheet Preview — Preview of S3MF PDF

Datasheet Details

Part number: S3MF
Manufacturer: SEMTECH
File Size: 339.11 KB
Datasheet: S3MF-SEMTECH.pdf
Description: SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIER
