SVF4N150F

1500V N-CHANNEL MOSFET

SVF4N150F Features

* 4A, 1500V, RDS(on)(typ)=5.0@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 2 1 3 12 3 TO-220F-3L 1. Gate 2. Drain 3. Source 123 TO-3PF 12 3 TO-247-3L ORDERING INFORMATION Part No. SVF4N150PF SVF4N150P7 SVF4N150F Package TO-3PF TO-247-3L

SVF4N150F General Description

SVF4N150PF(P7)(F) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switch.

SVF4N150F Datasheet (371.23 KB)

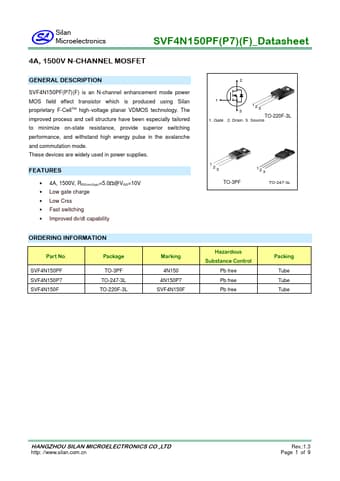

Preview of SVF4N150F PDF

Datasheet Details

Part number:

SVF4N150F

Manufacturer:

SILAN MICROELECTRONICS

File Size:

371.23 KB

Description:

1500v n-channel mosfet.
