SVF4N60CAK, SVF4N60CAF - 600V N-CHANNEL MOSFET

SILAN MICROELECTRONICS

📥 Download Datasheet

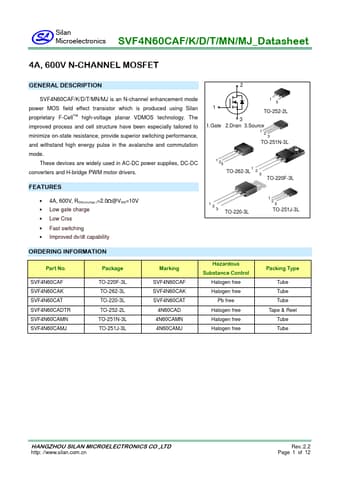

SVF4N60CAK Datasheet Preview — This datasheet PDF includes multiple part numbers: SVF4N60CAK, SVF4N60CAF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SVF4N60CAK, SVF4N60CAF
Manufacturer	SILAN MICROELECTRONICS
File Size	407.04 KB
Description	600V N-CHANNEL MOSFET
Datasheet	SVF4N60CAF-SILANMICROELECTRONICS.pdf
Note	This datasheet PDF includes multiple part numbers: SVF4N60CAK, SVF4N60CAF. Please refer to the document for exact specifications by model.

SVF4N60CAK Product details

Description

2 SVF4N60CAF/K/D/T/MN/MJ is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology.The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.These devices are widely used in AC-DC power supplies, DC-DC converters and H-bridge PWM motor drivers.

Features

13 1 TO-252-2L 1.Gate 3 2.Drain 3.Source 123 TO-251N-3L 1 23 TO-262-3L 1 2 3 TO-220F-3L.
4A, 600V, RDS(on)(typ. )=2.0@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Improved dv/dt capability 12 3 TO-220-3L 12 3 TO-251J-3L.
