SVF4N60CAMN 600V N-CHANNEL MOSFET

2 SVF4N60CAF/K/D/T/MN/MJ is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superi.

SVF4N60CAMN Features

* 13 1 TO-252-2L 1.Gate 3 2.Drain 3.Source 123 TO-251N-3L 1 23 TO-262-3L 1 2 3 TO-220F-3L

* 4A, 600V, RDS(on)(typ.)=2.0@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 12 3 TO-220-3L 12 3 TO-251J-3L ORDERING INFORMATION Part No. SVF4N60C

SVF4N60CAF-SILANMICROELECTRONICS.pdf

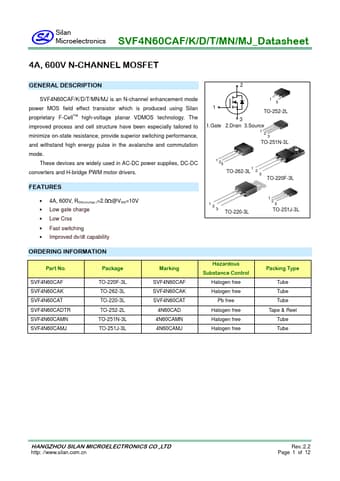

SVF4N60CAMN Datasheet Preview — This datasheet PDF includes multiple part numbers: SVF4N60CAMN, SVF4N60CAF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SVF4N60CAMN, SVF4N60CAF

Manufacturer:

SILAN MICROELECTRONICS

File Size:

407.04 KB

Description:

600v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVF4N60CAMN, SVF4N60CAF.
Please refer to the document for exact specifications by model.
