SVF4N65CAM, SVF4N65CAF Datasheet - SL

SVF4N65CAM 650V N-CHANNEL MOSFET

SVF4N65CAF/D/M/MJ/MN/K is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior s.

SVF4N65CAM Features

* 4A, 650V, RDS(on)(typ.)=2.3Ω@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF4N65CAF SVF4N65CAD SVF4N65CADTR SVF4N65CAM SVF4N65CAMJ SVF4N65CAMN SVF4N65CAK Package TO-220F-3L TO-252-2L TO-252-2L T

SVF4N65CAF-SL.pdf

This datasheet PDF includes multiple part numbers: SVF4N65CAM, SVF4N65CAF. Please refer to the document for exact specifications by model.

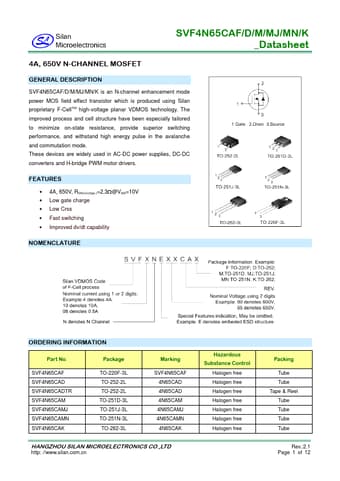

SVF4N65CAM Datasheet Preview Page 2 SVF4N65CAM Datasheet Preview Page 3

Datasheet Details

Part number:

SVF4N65CAM, SVF4N65CAF

Manufacturer:

SL

File Size:

506.72 KB

Description:

650v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVF4N65CAM, SVF4N65CAF.
Please refer to the document for exact specifications by model.
