Datasheet Details
Part number:
SVF4N65F, SVF4N65T
Manufacturer:
SL
File Size:
642.54 KB
Description:
N-channel mosfet.
Note:
This datasheet PDF includes multiple part numbers: SVF4N65F, SVF4N65T.
Please refer to the document for exact specifications by model.

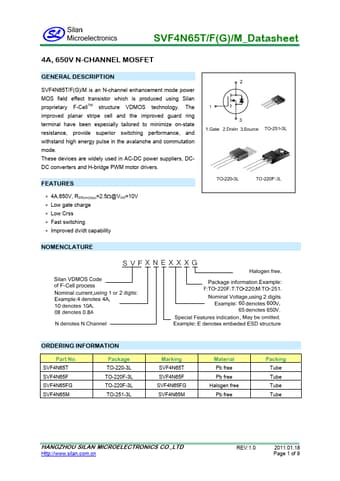

SVF4N65F, SVF4N65T, N-channel MOSFET
SVF4N65T/F(G)/M is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology.
The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provid
SVF4N65F Features
* ∗ 4A,650V, RDS(on)(typ)=2.5Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF4N65T SVF4N65F SVF4N65FG SVF4N65M Package TO-220-3L TO-220F-3L TO-220F-3L TO-251-3L Marking SVF4N65T SVF4N65F SVF4N65FG SVF4N65M Material
