SP830 Datasheet - SIPAT

SP830 SAW filter technical specification

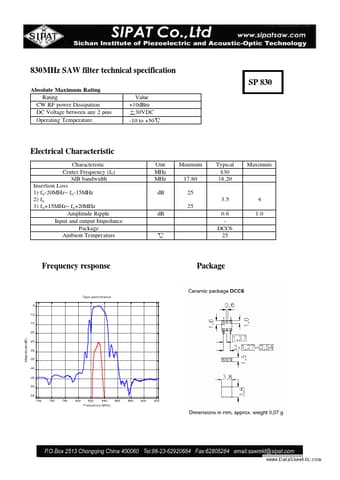

www.DataSheet4U.com 830MHz SAW filter technical specification SP 830 Absolute Maximum Rating Rating CW RF power Dissipation DC Voltage between any 2 pins Operating Temperature Value +10dBm 30VDC -10 to +50 Electrical Characteristic Characteristic Center Frequency (f0 ) 3dB bandwidth Insertion Loss 1) f0 -20MHz~ f0 -15MHz 2) f0 3) f0 +15MHz~ f0 +20MHz Amplitude Ripple Input and output Impedance Package Ambient Temperature Unit MHz MHz dB Minimum 17.80 25 3.5 25 dB 0.6 DCC6 25 1.0 4 Typical 830 .

SP830 Datasheet (130.53 KB)

SP830 Datasheet Preview — Preview of SP830 PDF

Datasheet Details

Part number:

SP830

Manufacturer:

SIPAT

File Size:

130.53 KB

Description:

Saw filter technical specification.
