SVF2N60D, SVF2N60M - 600V N-CHANNEL MOSFET

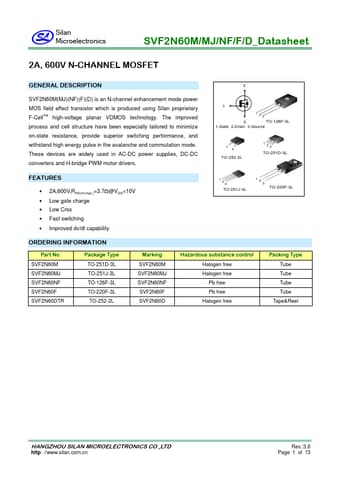

SVF2N60D Datasheet Preview — This datasheet PDF includes multiple part numbers: SVF2N60D, SVF2N60M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SVF2N60D, SVF2N60M
Manufacturer	SL
File Size	419.59 KB
Description	600V N-CHANNEL MOSFET
Datasheet	SVF2N60M-SL.pdf
Note	This datasheet PDF includes multiple part numbers: SVF2N60D, SVF2N60M. Please refer to the document for exact specifications by model.

SVF2N60D Product details

Description

2 SVF2N60M(MJ)(NF)(F)(D) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology.The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.These devices are widely used in AC-DC power supplies, DC-DC converters and H-bridge PWM motor drivers.

Features

2A,600V,RDS(on)(typ. )=3.7@VGS=10V.
Low gate charge.
Low Crss.
Fast switching.
Improved dv/dt capability 12 3 TO-251J-3L 12 3 TO-220F-3L.
