1N4148W - FAST SWITCHINGDIODE

Datasheet Summary

Features

Small Package.
Low Reverse Current.
Fast Switching Speed.
Surface Mount Package Ideally Suited for Automatic Insertion.
This is a Halogen Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: SOD-123, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.01 grams(approx) Maximum Ratings @T.

Datasheet Details

Part number	1N4148W
Manufacturer	SMC Diode
File Size	246.00 KB
Description	FAST SWITCHINGDIODE
Datasheet	1N4148W Datasheet

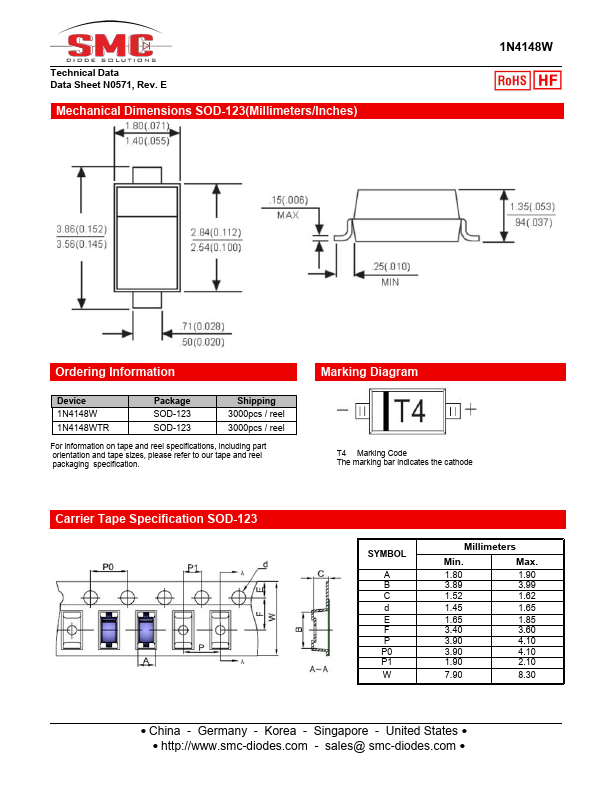

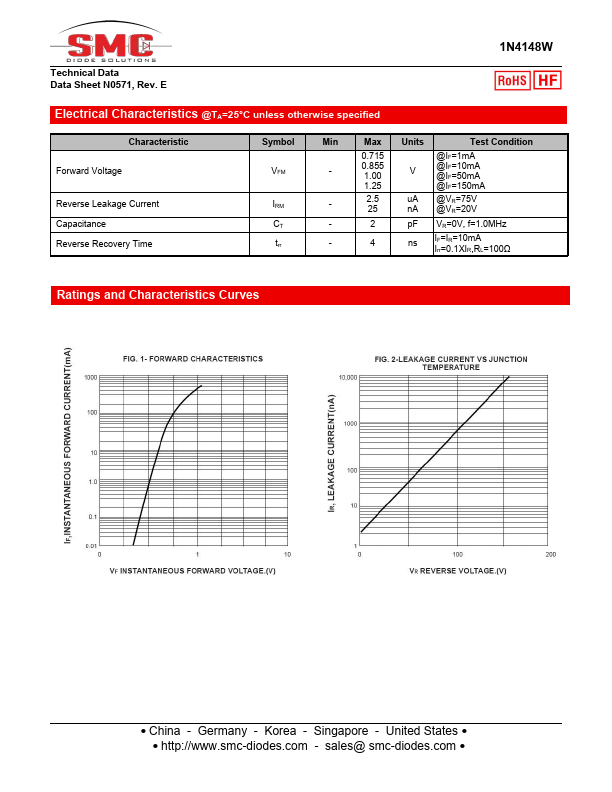

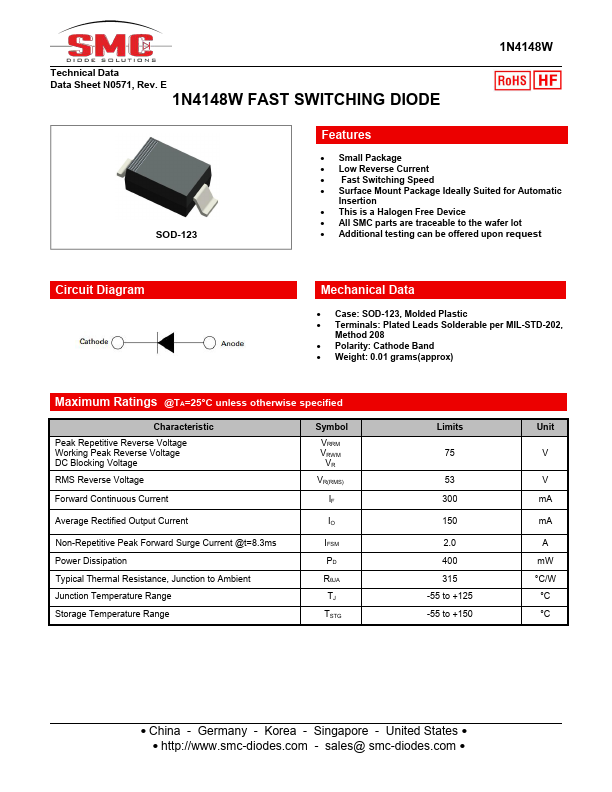

Additional preview pages of the 1N4148W datasheet.

📁 Similar Datasheet

1N4148W - Surface Mount Fast Switching Diode (SeCoS)

1N4148W - SURFACE MOUNT FAST SWITCHING DIODE (SANGDEST MICROELECTRONICS)

1N4148W - SURFACE MOUNT FAST SWITCHING DIODE (DIODES)

1N4148W - Small Signal Fast Switching Diode (Vishay)

1N4148W - 400mW High Speed SMD Switching Diode (Taiwan Semiconductor)

1N4148W - 400mW High Speed Switching Diode (MCC)

1N4148W-AU - SURFACE MOUNT SWITCHING DIODES (PAN JIT)

1N4148W-G - Small Signal Fast Switching Diode (Vishay)

1N4148W-G - High Speed SMD Switching Diode (Taiwan Semiconductor)

1N4148W-G - SMD Switching Diode (Comchip)

Full PDF Text Transcription

Click to expand full text

Technical Data Data Sheet N0571, Rev. E 1N4148W FAST SWITCHING DIODE 1N4148W SOD-123 Features  Small Package  Low Reverse Current  Fast Switching Speed  Surface Mount Package Ideally Suited for Automatic Insertion  This is a Halogen Free Device  All SMC parts are traceable to the wafer lot  Additional testing can be offered upon request Circuit Diagram Mechanical Data  Case: SOD-123, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band  Weight: 0.
