MBRD2045CT, SCHOTTKY RECTIFIER

MBRD2045CT Technical Data Data Sheet N0047, Rev.A MBRD2045CT SCHOTTKY RECTIFIER DPAK .

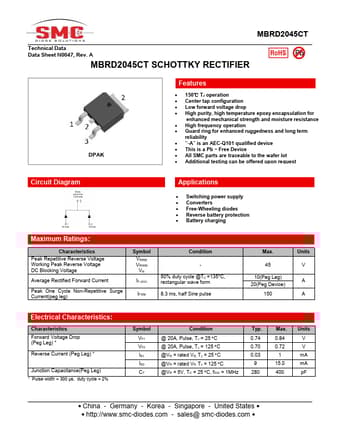

datasheet Preview Page 1 from Datasheet4u.com

MBRD2045CT-SMCDiode.pdf

MBRD2045CT Datasheet Preview — Preview of MBRD2045CT PDF

Datasheet Details

Part number:

MBRD2045CT

Manufacturer:

SMC Diode

File Size:

212.60 KB

Description:

SCHOTTKY RECTIFIER

Features

* 150℃ TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Rep
