MBRD1045 - SCHOTTKY RECTIFIER

MBRD1045 Description

Technical Data Data Sheet N0803, Rev.A MBRD1045 SCHOTTKY RECTIFIER MBRD1045 DPAK Circuit Diagram .

MBRD1045 Features

* 150℃ TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

MBRD1045 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Rep

📥 Download Datasheet

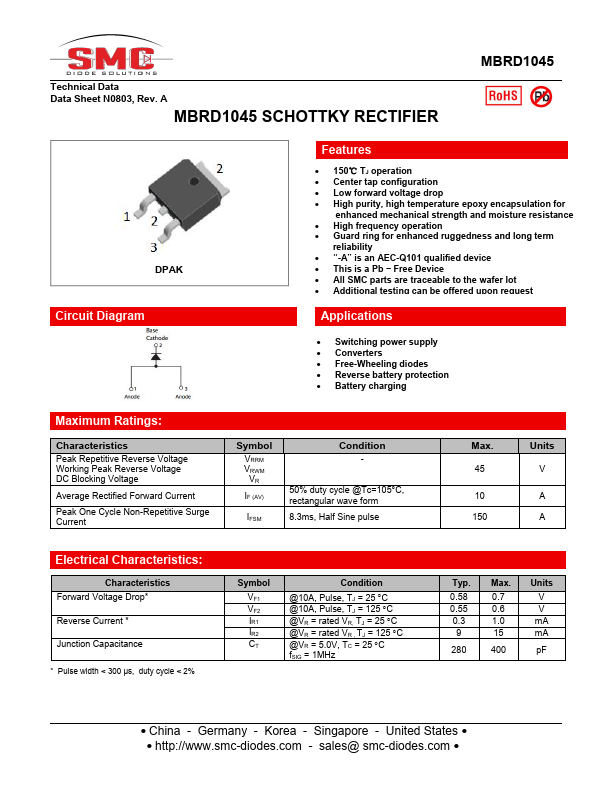

Preview of MBRD1045 PDF

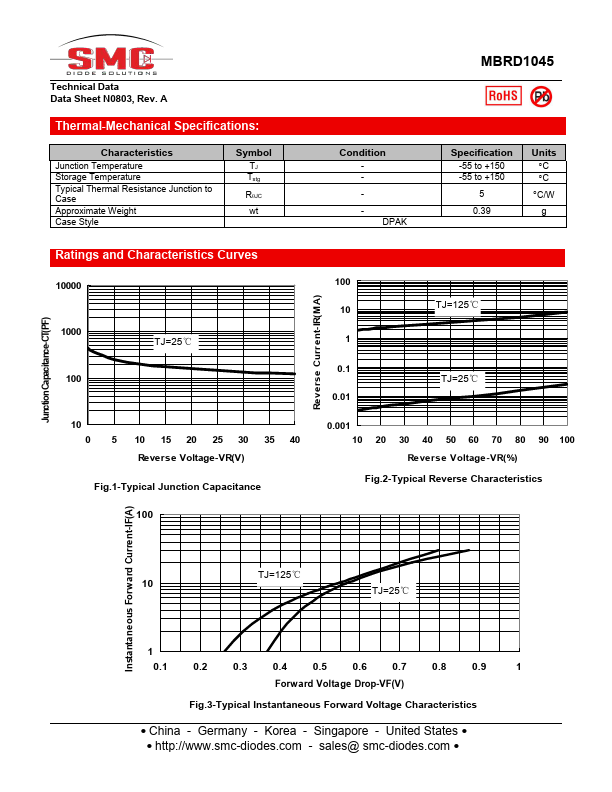

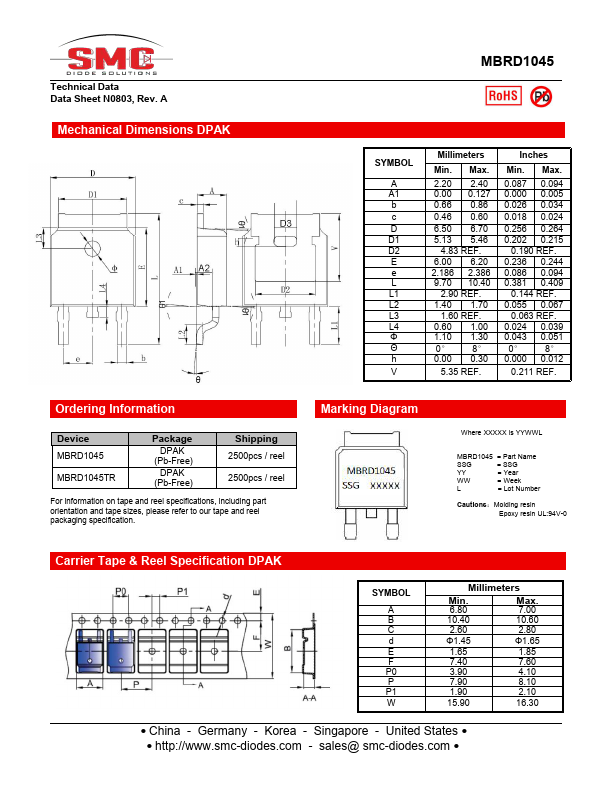

datasheet Preview Page 2 datasheet Preview Page 3
