MBRD20100 - SCHOTTKY RECTIFIER

MBRD20100 Description

MBRD20100 Technical Data Data Sheet N0815, Rev.A MBRD20100 SCHOTTKY RECTIFIER DPAK .

MBRD20100 Features

* 150℃ TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

MBRD20100 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Re

📥 Download Datasheet

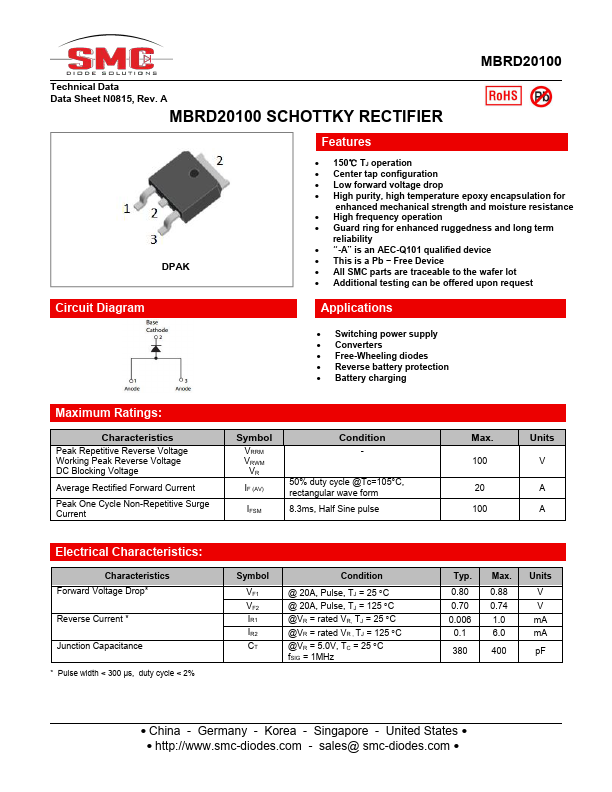

Preview of MBRD20100 PDF

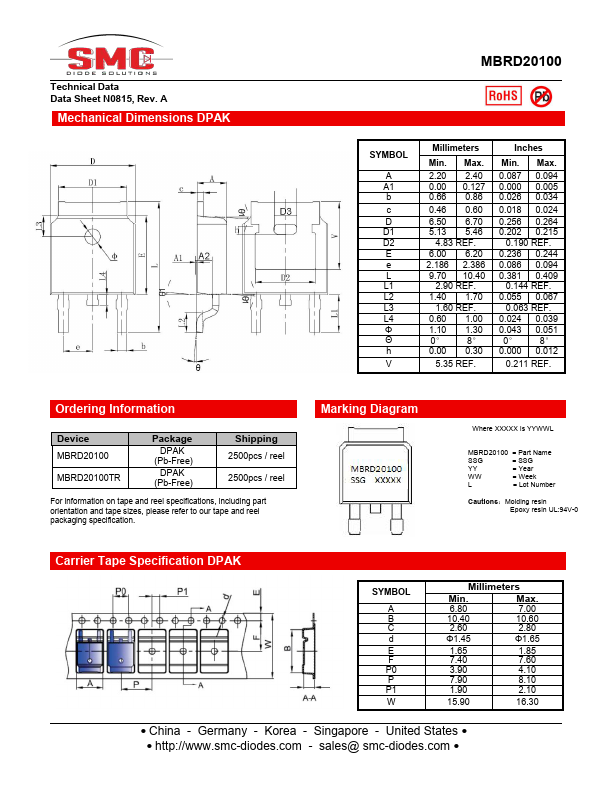

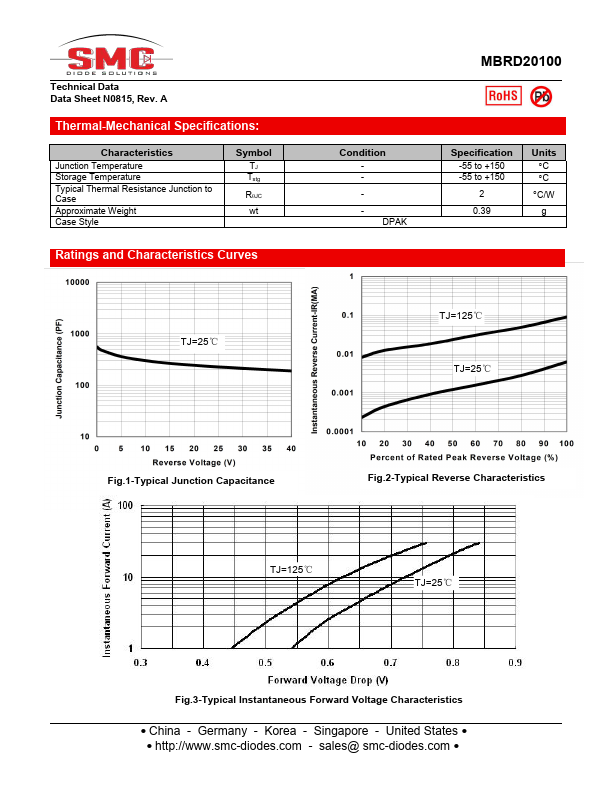

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRD20100
Manufacturer
SMC Diode
File Size
764.74 KB
Datasheet
MBRD20100-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
