MBRD10200 - SCHOTTKY RECTIFIER

MBRD10200 Description

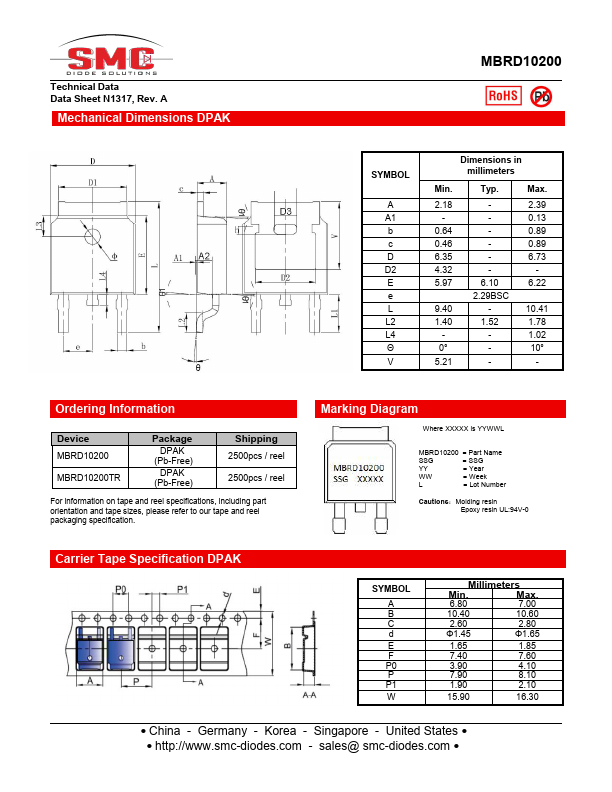

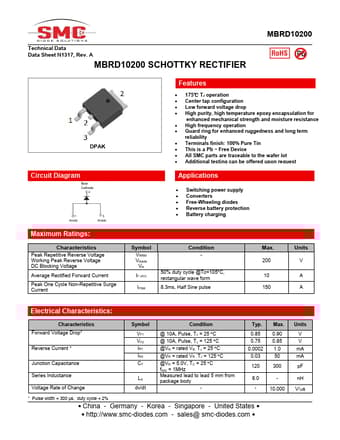

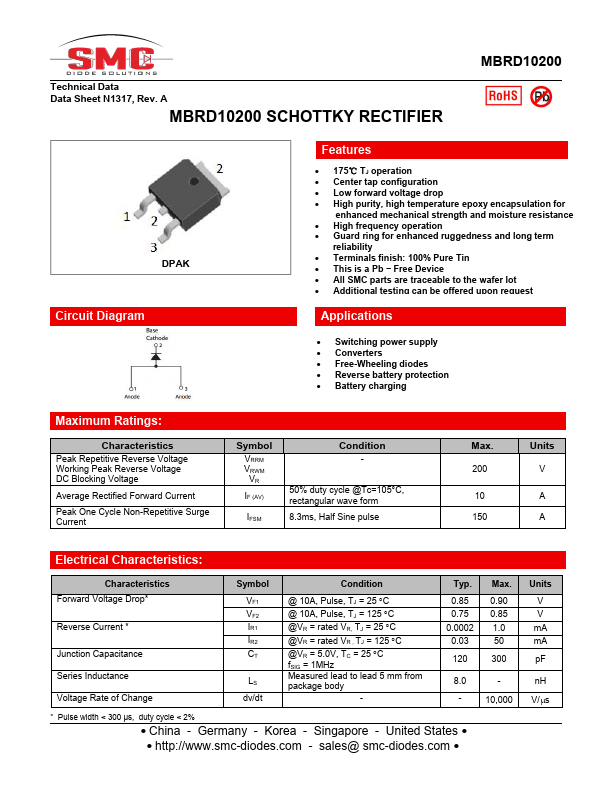

Technical Data Data Sheet N1317, Rev.A MBRD10200 SCHOTTKY RECTIFIER MBRD10200 DPAK Circuit Diagram .

MBRD10200 Features

* 175℃ TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

MBRD10200 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection

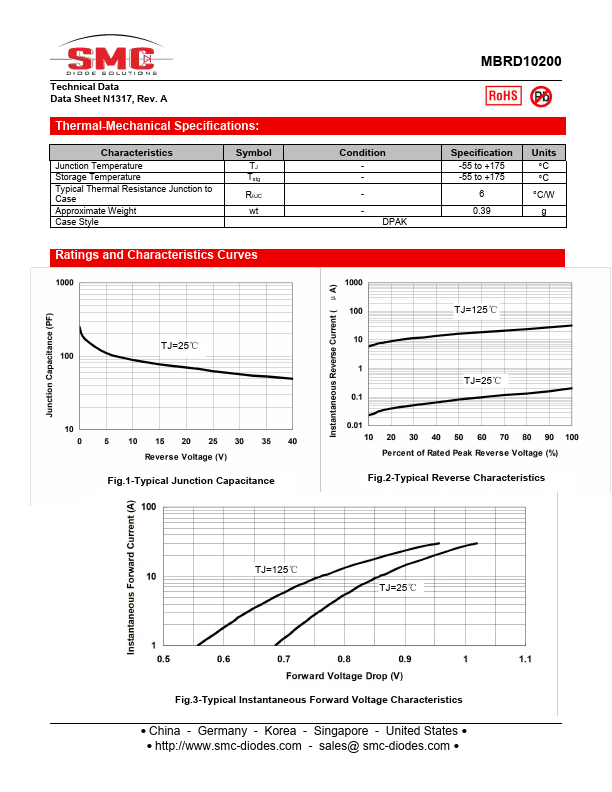

* Battery charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Rep
