S3D03065A 3A 650V SIC POWER SCHOTTKY RECTIFIER

S3D03065A Description

S3D03065A S3D03065F S3D03065E S3D03065I Technical Data Data Sheet N2362, REV.C S3D03065A/S3D03065F/S3D03065E/S3D03065I 3A 650V SIC POWER SCHOTTKY RECT.
This 650V 3A diode is high voltage Schottky rectifier that has very low total conduction losses and very stable switching characteristics over tempera.

S3D03065A Features

* 175°C TJ operation
* Ultra-low switching loss
* Switching speeds independent of operating temperature
* Low total conduction losses
* High forward surge current capability
* High package isolation voltage
* Terminals finish: 100% Pure Tin
* “-A” is an AEC-Q101 quali

📥 Download Datasheet

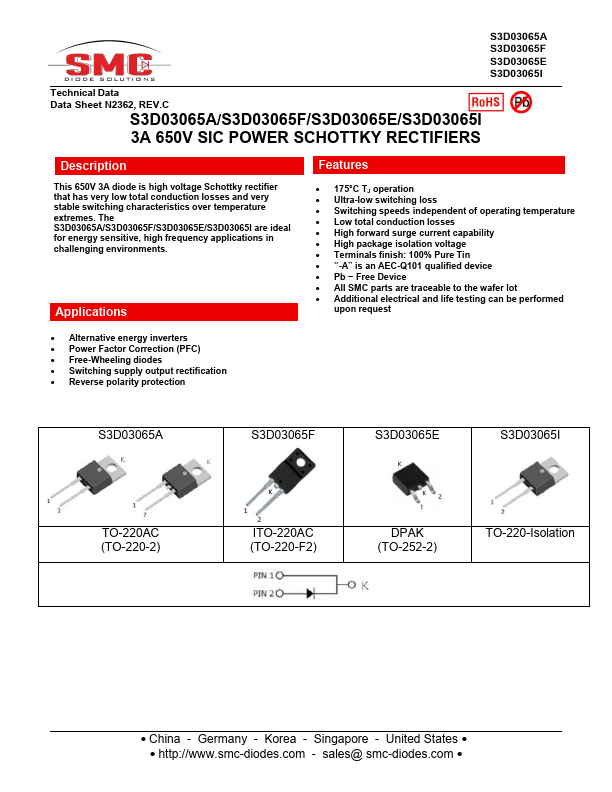

Preview of S3D03065A PDF

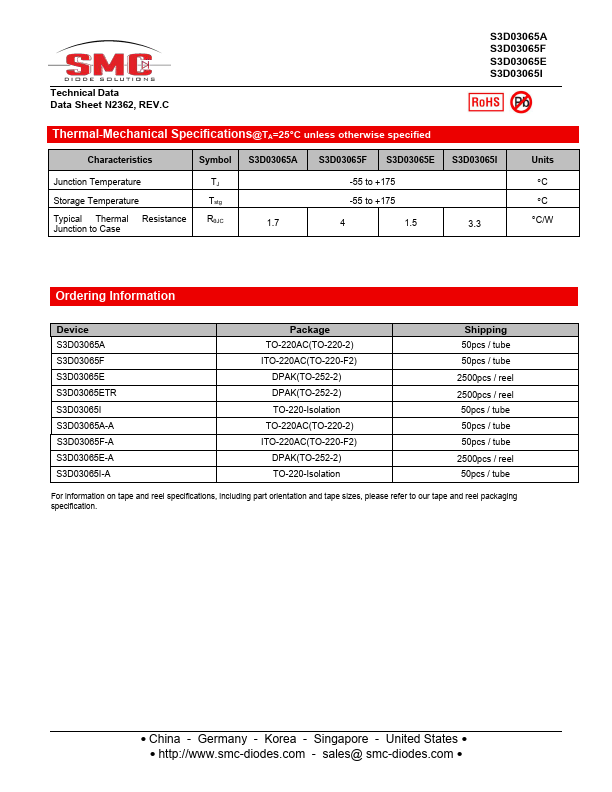

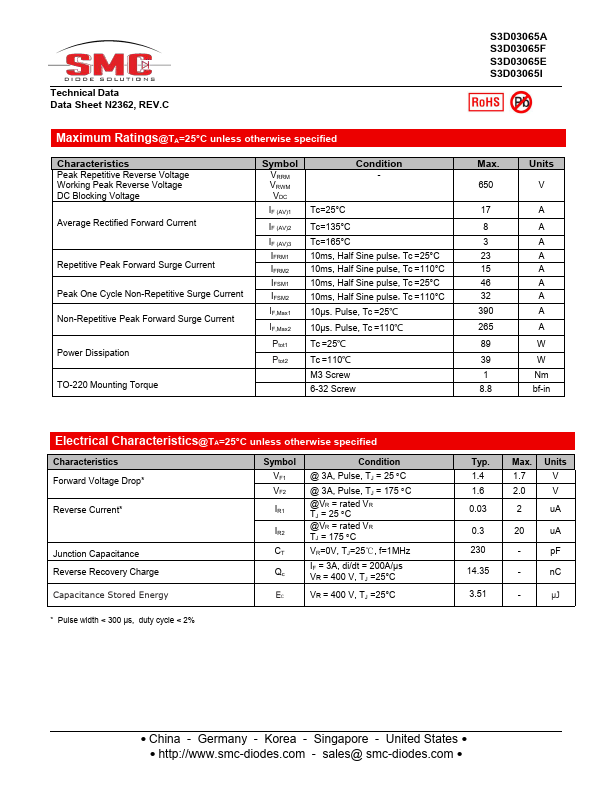

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3D03065A
Manufacturer
SMC Diode
File Size
1.59 MB
Datasheet
S3D03065A-SMCDiode.pdf
Description
3A 650V SIC POWER SCHOTTKY RECTIFIER
