S3D08065M - 650V SIC POWER SCHOTTKY RECTIFIER

Product Overview

SMC Diode

📥 Download Datasheet

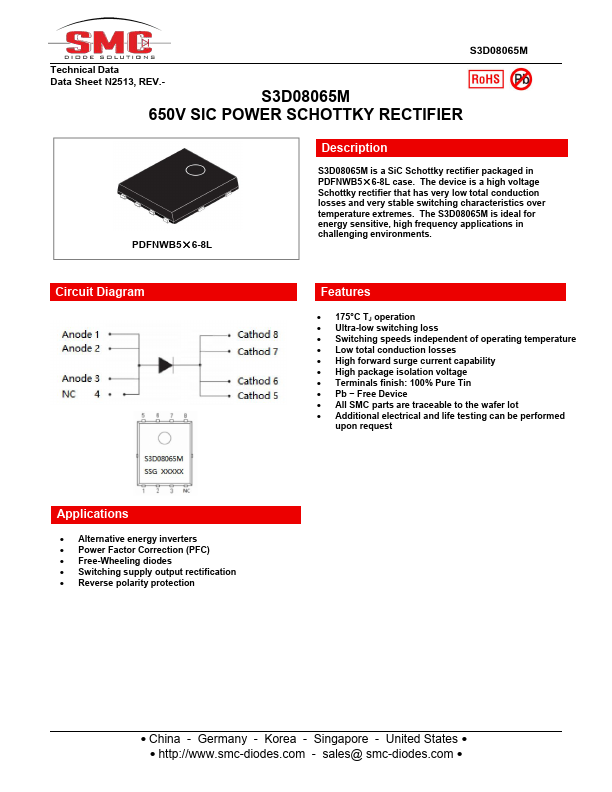

S3D08065M 650V SIC POWER SCHOTTKY RECTIFIER by SMC Diode - Datasheet Preview — Datasheet preview – S3D08065M

Datasheet Details

Part number	S3D08065M
Manufacturer	SMC Diode
File Size	1.22 MB
Description	650V SIC POWER SCHOTTKY RECTIFIER
Datasheet	S3D08065M Datasheet

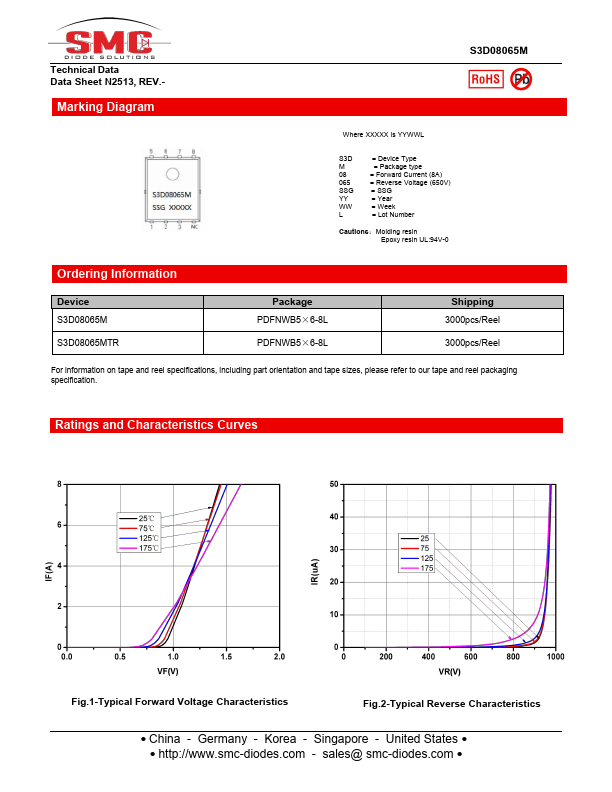

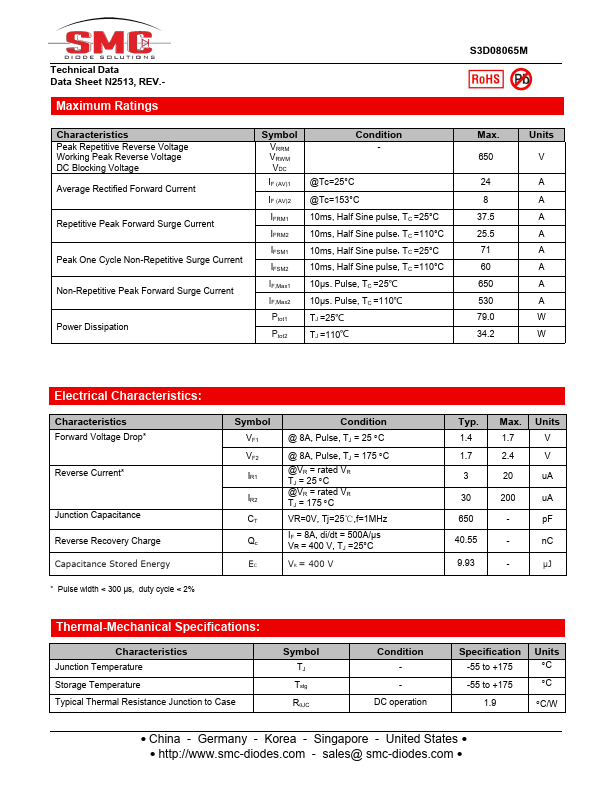

Additional preview pages of the S3D08065M datasheet.

Product details

Description

S3D08065M is a SiC Schottky rectifier packaged in PDFNWB5×6-8L case.

Features

175°C TJ operation.
Ultra-low switching loss.
Switching speeds independent of operating temperature.
Low total conduction losses.
High forward surge current capability.
High package isolation voltage.
Terminals finish: 100% Pure Tin.
Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional electrical and life testing can be performed upon request.
