S3D03065T 3A 650V SIC POWER SCHOTTKY RECTIFIER

S3D03065T Description

S3D03065T Technical Data Data Sheet N2748, REV.- S3D03065T 3A 650V SIC POWER SCHOTTKY RECTIFIERS .
This 650V 3A diode is high voltage Schottky rectifier that has very low total conduction losses and very stable switching characteristics over tempera.

S3D03065T Features

* SOD-123FL
* 175°C TJ operation
* Ultra-low switching loss
* Switching speeds independent of operating temperature
* Low total conduction losses
* High forward surge current capability
* High package isolation voltage
* Terminals finish: 100% Pure Tin
* “-A” is an AE

S3D03065T Applications

* in challenging environments. Applications
* Alternative energy inverters
* Power Factor Correction (PFC)
* Free-Wheeling diodes
* Switching supply output rectification
* Reverse polarity protection
* China - Germany - Korea - Singapore - United States
* http://www

📥 Download Datasheet

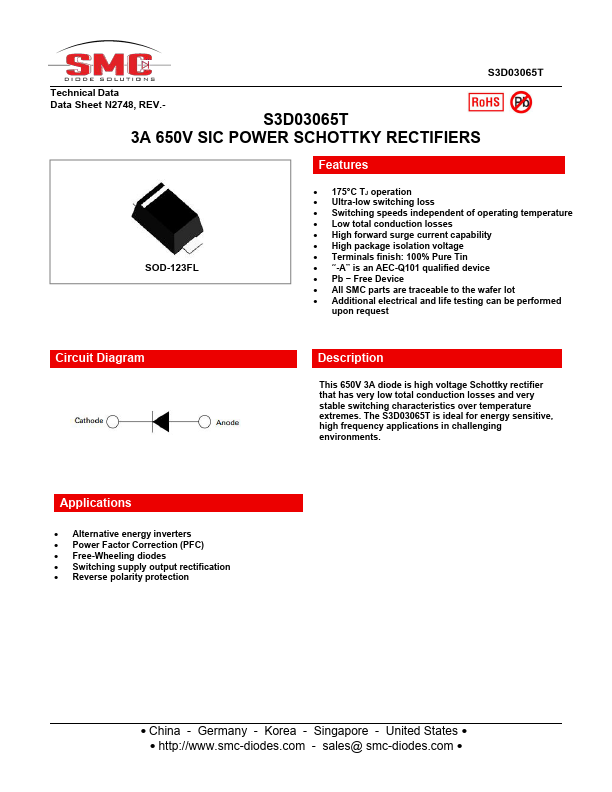

Preview of S3D03065T PDF

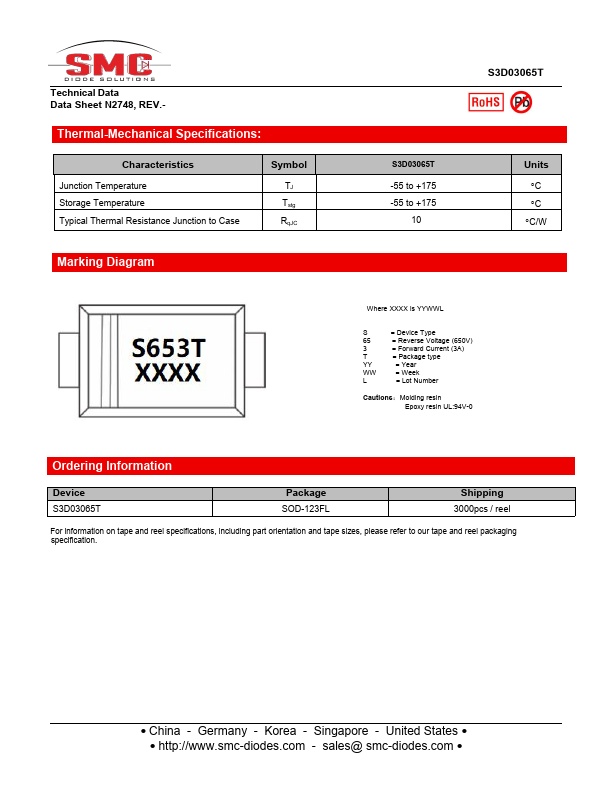

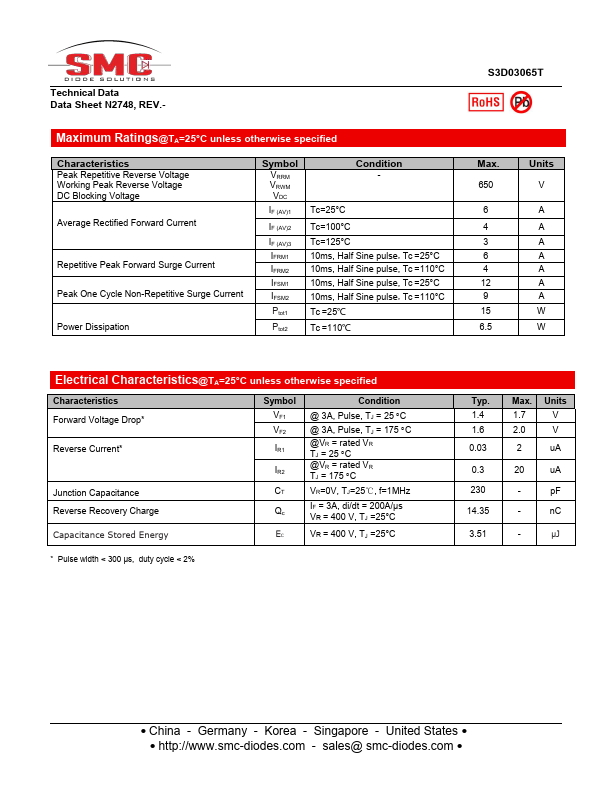

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3D03065T
Manufacturer
SMC Diode
File Size
1.25 MB
Datasheet
S3D03065T-SMCDiode.pdf
Description
3A 650V SIC POWER SCHOTTKY RECTIFIER
