S3D03065F - 3A 650V SIC POWER SCHOTTKY RECTIFIER

Product Overview

SMC Diode

📥 Download Datasheet

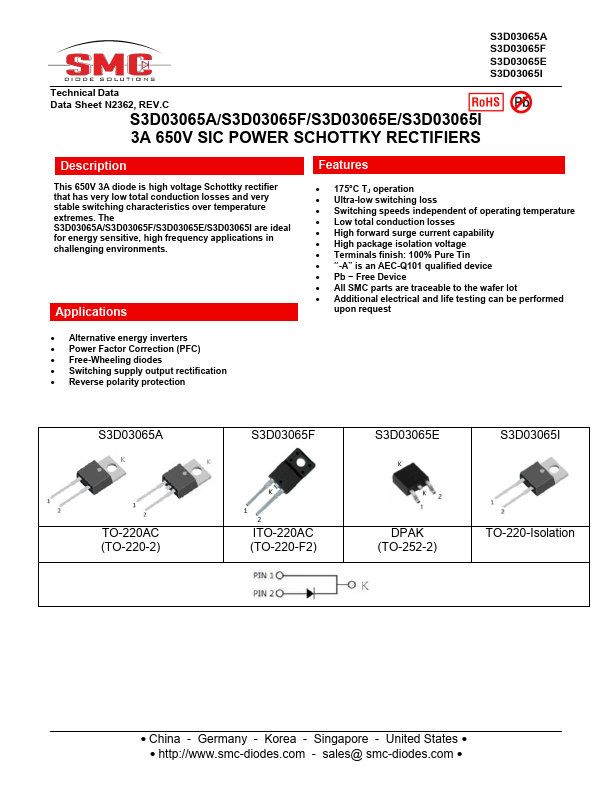

S3D03065F 3A 650V SIC POWER SCHOTTKY RECTIFIER by SMC Diode - Datasheet Preview — Datasheet preview – S3D03065F

Datasheet Details

Part number	S3D03065F
Manufacturer	SMC Diode
File Size	1.59 MB
Description	3A 650V SIC POWER SCHOTTKY RECTIFIER
Datasheet	S3D03065F Datasheet
Note	This datasheet PDF includes multiple part numbers: S3D03065F, S3D03065A. Please refer to the document for exact specifications by model.

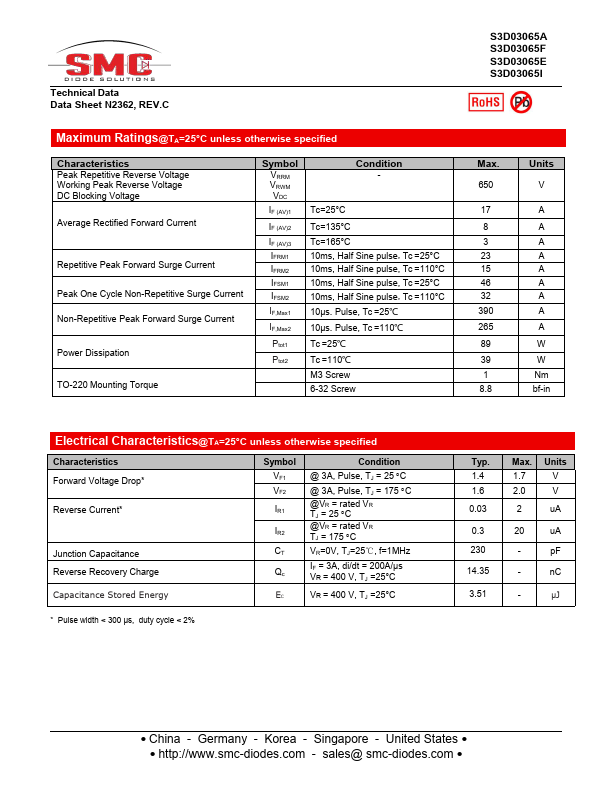

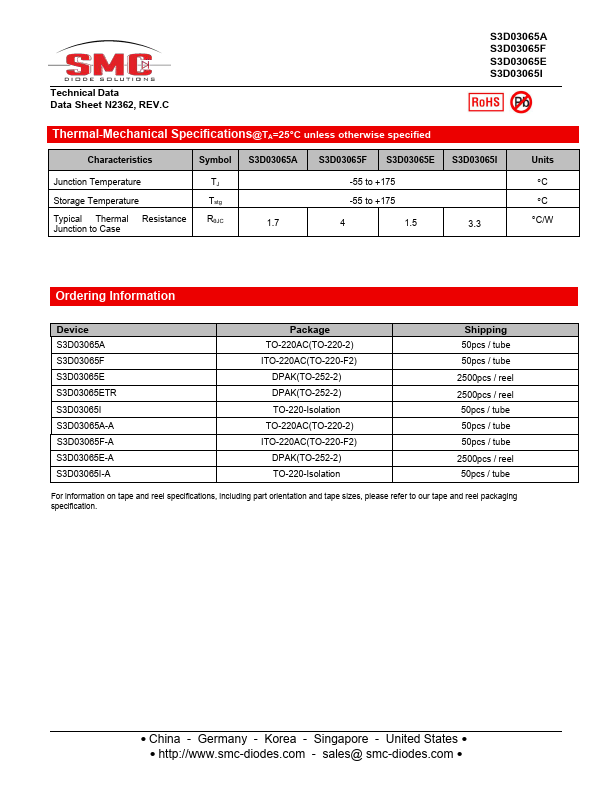

Additional preview pages of the S3D03065F datasheet.

Product details

Description

This 650V 3A diode is high voltage Schottky rectifier that has very low total conduction losses and very stable switching characteristics over temperature extremes.

Features

175°C TJ operation.
Ultra-low switching loss.
Switching speeds independent of operating temperature.
Low total conduction losses.
High forward surge current capability.
High package isolation voltage.
Terminals finish: 100% Pure Tin.
“-A” is an AEC-Q101 qualified device.
Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional electrical and life testing can be performed upon request.
Alternative energy inver.
