244NQ035-1, 244NQ035 SCHOTTKY RECTIFIER

244NQ035-1 Description

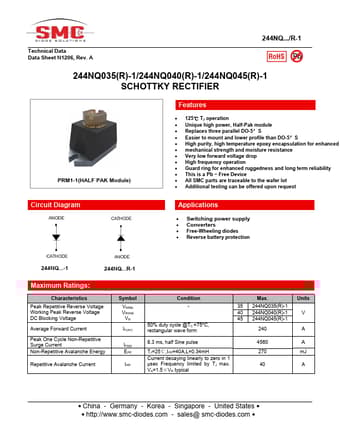

Technical Data Data Sheet N1206, Rev.A 244NQ/R-1 244NQ035(R)-1/244NQ040(R)-1/244NQ045(R)-1 SCHOTTKY RECTIFIER PRM1-1(HALF PAK Module) .

244NQ035-1 Features

* 125℃ TJ operation
* Unique high power, Half-Pak module
* Replaces three parallel DO-5’S
* Easier to mount and lower profile than DO-5’S
* High purity, high temperature epoxy encapsulation for enhanced
* mechanical strength and moisture resistance
* Very low forward volt

244NQ035-1 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection 244NQ-1 244NQR-1 Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Forward Current Peak One Cycle Non-Repetitiv

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 244NQ035-1, 244NQ035. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
244NQ035-1, 244NQ035
Manufacturer
SMC
File Size
296.24 KB
Datasheet
244NQ035-SMC.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 244NQ035-1, 244NQ035.
Please refer to the document for exact specifications by model.
