MBR15100, MBR1530 Plastic Schottky Barrier Rectifiers

MBR15100 Description

MBR1530 thru MBR15100 30 *- 100 V 15.0A Plastic Schottky Barrier Rectifiers Reverse Voltage 30 to 100 V Forward Current 15.0 A .

MBR15100 Features

* UL94V-O Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
* Low reverse leakage
* High forward surge capability
* High temperature soldering guaranteed: 260℃/10 260℃/10 seconds at terminals
* RoHS 。Lead and body according with RoHS standard

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR15100, MBR1530. Please refer to the document for exact specifications by model.

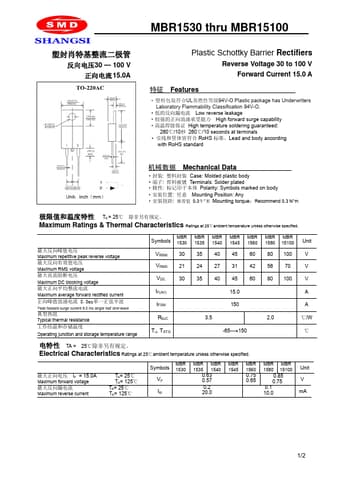

datasheet Preview Page 2

Datasheet Details

Part number
MBR15100, MBR1530
Manufacturer
SMD
File Size
356.79 KB
Datasheet
MBR1530-SMD.pdf
Description
Plastic Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR15100, MBR1530.
Please refer to the document for exact specifications by model.
