SUF4005, SUF4001 Surface Mount Fast Efficient Rectifiers

SUF4005 Description

SUF4001 thru SUF4007 50 *- 1000 V 1A Surface Mount Fast Efficient Rectifiers Reverse Voltage 50 to 1000 V Forward Current 1 A .

SUF4005 Applications

* Glass passivated chip junction
* Low leakage current
* High forward surge capability
* Fast switching for high efficiency
* 260°C/10 High temperature soldering guaranteed: 260°C/10 seconds at terminals
* RoHS 。Lead and body according with RoHS standard Mechanical Dat

📥 Download Datasheet

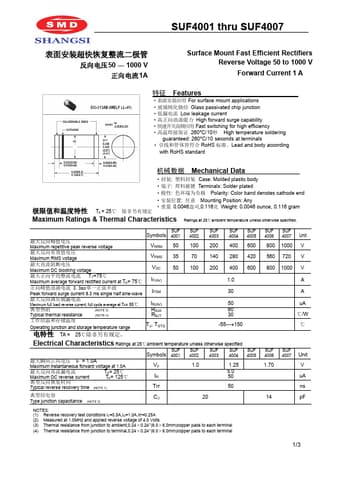

SUF4005 Datasheet Preview — This datasheet PDF includes multiple part numbers: SUF4005, SUF4001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: SUF4005, SUF4001
Manufacturer: SMD
File Size: 358.54 KB
Datasheet: SUF4001-SMD.pdf
Description: Surface Mount Fast Efficient Rectifiers
Note: This datasheet PDF includes multiple part numbers: SUF4005, SUF4001.
Please refer to the document for exact specifications by model.
