COM5026

Baud Rate Generator

SMSC

COM5026 Features

* o On chip crystal oscillator or external frequency input o Choice of 16 output frequencies 016 asynchronous/synchronous baud rates o Direct UART/USRT/ ASTRO/USYNRT compatibility o TTL, MOS compatibility PIN CONFIGURATION XTAL/EXT1 11 XTAL/EXT2 21 +5v 31 NC 41 GND 51 NC 61 + 12v 71 "-/ 14 tOUT 13

COM5026 General Description

The Standard Microsystems COM 5026 Baud Rate Generator/Programmable Divider is an N-channel COPLAMOS~ MaS/LSI device which, from a single crystal (on-chip oscillator) or input frequency is capable of generating 16 externally selectable frequencies. The COM 5026 is specifically dedicated to generatin.

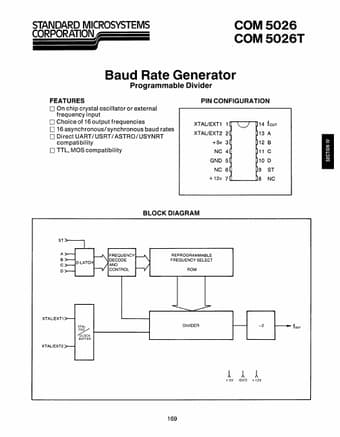

COM5026 Datasheet (184.38 KB)

COM5026 Datasheet Preview — Preview of COM5026 PDF

Datasheet Details

Part number:

COM5026

Manufacturer:

SMSC

File Size:

184.38 KB

Description:

Baud rate generator.
