COM5025 - Universal Synchronous Receiver/Transmitter

COM5025 Description

STANDARD MICROSYSTEMS CORPORATION COM 5025 /LPCFAMILY Multi-Protocol Universal Synchronous Receiver/Transmitter USYNR/T .
The COM 5025 is a COPLAMOS® n channel silicon gate MOS/LSI device that meets the majority of synchronous communications requirements, by interfacing p.

COM5025 Features

* o Selectable Protocol-Bit or Byte oriented o Direct TTL Compatibility o Three-state Input/Output BUS o Processor Compatible-8 or 16 bit o High Speed Operation-1.5 M Baud-typical o Fully Double Buffered-Data, Status, and Control Registers o Full or Half Duplex Operation-independent Transmitter and Re

📥 Download Datasheet

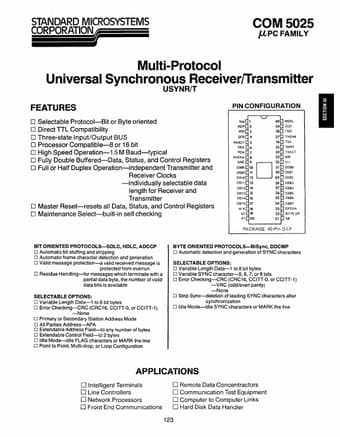

Preview of COM5025 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
COM5025
Manufacturer
SMSC
File Size
428.60 KB
Datasheet
COM5025-SMSC.pdf
Description
Universal Synchronous Receiver/Transmitter
