COM5026T, COM5026 - Baud Rate Generator

COM5026T Description

STANDARD MICROSYSTEMS CORPORATION COM 5026 cOM5026T Baud Rate Generator Programmable Divider .
The Standard Microsystems COM 5026 Baud Rate Generator/Programmable Divider is an N-channel COPLAMOS~ MaS/LSI device which, from a single crystal (on-.

COM5026T Features

* o On chip crystal oscillator or external frequency input o Choice of 16 output frequencies 016 asynchronous/synchronous baud rates o Direct UART/USRT/ ASTRO/USYNRT compatibility o TTL, MOS compatibility PIN CONFIGURATION XTAL/EXT1 11 XTAL/EXT2 21 +5v 31 NC 41 GND 51 NC 61 + 12v 71 "-/ 14 tOUT 13

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: COM5026T, COM5026. Please refer to the document for exact specifications by model.

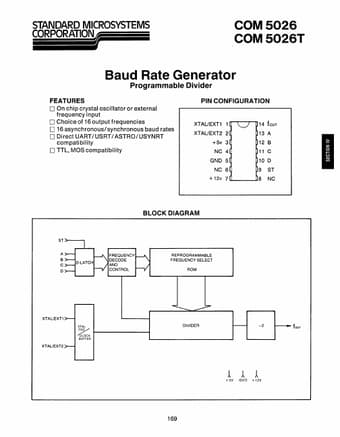

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
COM5026T, COM5026
Manufacturer
SMSC
File Size
184.38 KB
Datasheet
COM5026-SMSC.pdf
Description
Baud Rate Generator
Note
This datasheet PDF includes multiple part numbers: COM5026T, COM5026.
Please refer to the document for exact specifications by model.
