SE05V150D-92 - Transient Voltage Suppressors

Features

  • Small body outline dimensions.
  • Low body height.
  • Low Leakage current.
  • Response time is typically < 1 ns SOD-923.

📥 Download Datasheet

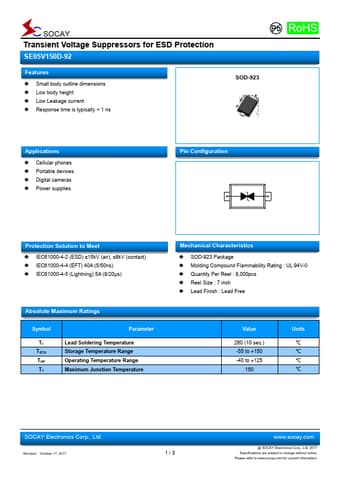

Datasheet preview – SE05V150D-92

Datasheet Details

Part number SE05V150D-92
Manufacturer SOCAY
File Size 693.64 KB
Description Transient Voltage Suppressors
Datasheet download datasheet SE05V150D-92 Datasheet
Additional preview pages of the SE05V150D-92 datasheet.

📁 Similar Datasheet

  • SE050 - Plug & Trust Secure Element (NXP)
  • SE005N - Error Amplifier (Sanken Electric)
  • SE012N - Error Amplifier (Sanken Electric)
  • SE015N - Error Amplifier (Sanken)
  • SE024N - Error Amplifier (Sanken)
  • SE034N - Error Amplifier (Sanken)
  • SE040N - Error Amplifier (Sanken)
  • SE06F10U5.0MA - Electrostatic Discharge Protection Device (Semiware)
  • SE070N - Error Amplifier (Sanken Electric)
  • SE07PB - ESD Capability Rectifiers (Vishay Siliconix)
Other Datasheets by SOCAY

Full PDF Text Transcription

Click to expand full text
Transient Voltage Suppressors for ESD Protection SE05V150D-92 Features  Small body outline dimensions  Low body height  Low Leakage current  Response time is typically < 1 ns SOD-923 Applications  Cellular phones  Portable devices  Digital cameras  Power supplies Pin Configuration Protection Solution to Meet  IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)  IEC61000-4-4 (EFT) 40A (5/50ns)  IEC61000-4-5 (Lightning) 5A (8/20μs) Absolute Maximum Ratings Symbol TL TSTG TOP TJ Parameter Lead Soldering Temperature Storage Temperature Range Operating Temperature Range Maximum Junction Temperature Mechanical Characteristics  SOD-923 Package  Molding Compound Flammability Rating : UL 94V-0  Quantity Per Reel : 8,000pcs  Reel Size : 7 inch  Lead Finish : Lead Free Value 260 (
