SE034N - Error Amplifier

This page provides the datasheet information for the SE034N, a member of the SE005N Error Amplifier family.

📥 Download Datasheet

Datasheet preview – SE034N

Datasheet Details

Part number SE034N
Manufacturer Sanken
File Size 28.69 KB
Description Error Amplifier
Datasheet download datasheet SE034N Datasheet
Additional preview pages of the SE034N datasheet.

📁 Similar Datasheet

  • SE005N - Error Amplifier (Sanken Electric)
  • SE012N - Error Amplifier (Sanken Electric)
  • SE050 - Plug & Trust Secure Element (NXP)
  • SE05N6C01GZ - Transient Voltage Suppressors (SOCAY)
  • SE05V150D-52 - Bi-directional TVS Diode (SOCAY)
  • SE05V150D-92 - Transient Voltage Suppressors (SOCAY)
  • SE05VP50N-16 - Transient Voltage Suppressors (SOCAY)
  • SE06F10U5.0MA - Electrostatic Discharge Protection Device (Semiware)
  • SE070N - Error Amplifier (Sanken Electric)
  • SE07PB - ESD Capability Rectifiers (Vishay Siliconix)
Other Datasheets by Sanken

Full PDF Text Transcription

Click to expand full text

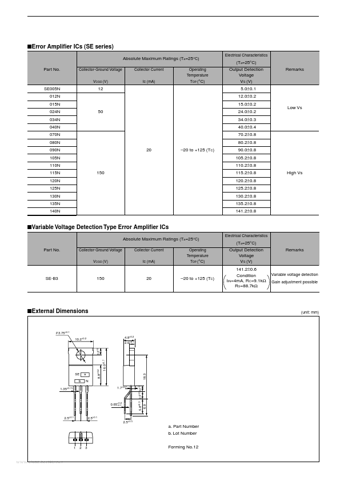

sError Amplifier ICs (SE series) Absolute Maximum Ratings (Ta=25°C) Part No. Collector-Ground Voltage VCGO (V) SE005N 012N 015N 024N 034N 040N 070N 080N 090N 105N 110N 115N 120N 125N 130N 135N 140N 150 20 –20 to +125 (TC) 50 12 Collector Current Ic (mA) Operating Temperature TOP (°C) Electrical Characteristics (Ta=25°C) Output Detection Voltage VS (V) 5.0± 0.1 12.0± 0.2 15.0± 0.2 24.0± 0.2 34.0± 0.3 40.0± 0.4 70.2± 0.8 80.2± 0.8 90.0± 0.8 105.2± 0.8 110.2± 0.8 115.2± 0.8 120.2± 0.8 125.2± 0.8 130.2± 0.8 135.2± 0.8 141.2± 0.8 High Vs Low Vs Remarks sVariable Voltage Detection Type Error Amplifier ICs Absolute Maximum Ratings (Ta=25°C) Part No.
