S25FL1-K Datasheet - SPANSION

S25FL1-K - CMOS 3.0-Volt Flash Non-Volatile Memory

of Spansion data sheet designations are presented here to highlight their presence and definitions.

Advance Information The Advance Information designation indicates that Spansion Inc.

is developing one or more specific products, but has not committed any design to production.

Information presented

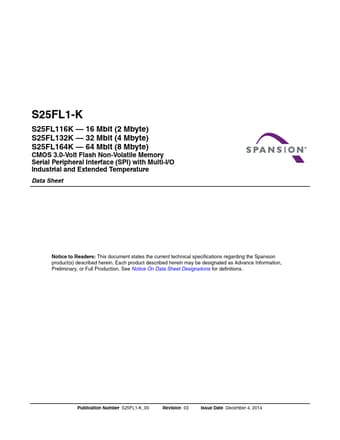

S25FL1-K S25FL116K 16 Mbit (2 Mbyte) S25FL132K 32 Mbit (4 Mbyte) S25FL164K 64 Mbit (8 Mbyte) CMOS 3.0-Volt Flash Non-Volatile Memory Serial Peripheral Interface (SPI) with Multi-I/O Industrial and Extended Temperature Data Sheet S25FL1-K Cover Sheet Notice to Readers: This document states the current technical specifications regarding the Spansion product(s) described herein.

Each product described herein may be designated as Advance Information, Preliminary, or F

S25FL1-K Features

* Serial Peripheral Interface (SPI)

* SPI Clock polarity and phase modes 0 and 3

* Command subset and footprint compatible with S25FL-K

* Read

* Normal Read (Serial):

* 50 MHz clock rate (-40°C to +85°C/105°C)

* 45 MHz clock rate (-40°C to +125°C)
